Description
The Cudy RE1200 AC1200 Dual Band Mesh Range Extender is a powerful solution designed to enhance and expand your Wi-Fi coverage throughout your home or office. Supporting both 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) frequencies, it delivers a combined Wi-Fi speed of 1200 Mbps, ensuring fast and stable connections for streaming, gaming, and smart home devices. With a maximum range of up to 150 meters (492 ft), this extender effectively eliminates dead zones and improves overall network performance.
Equipped with two external 5dBi antennas, the RE1200 provides faster and more reliable Wi-Fi by optimizing signal strength and minimizing interference. Its 2-in-1 design allows it to function as both a Wi-Fi extender and access point, offering versatile deployment options. The included fast Ethernet port supports wired connections for devices like gaming consoles, smart TVs, and desktop computers.
The RE1200 is compatible with any Wi-Fi router and supports Cudy Mesh technology for seamless network expansion, including multi-band simultaneous backhaul and Ethernet backhaul capabilities. Easy setup is ensured with WPS button functionality, allowing instant network extension. Compact and convenient, it uses a plug-in AC power design suitable for various regions.
Specification
- Model: RE1200
- Wi-Fi Speed: 2.4 GHz – 300 Mbps, 5 GHz – 867 Mbps
- Wi-Fi Standard: IEEE 802.11ac/n/g/a/b
- Wi-Fi Antennas: 2× 5dBi external antennas
- Wi-Fi Streams: 2.4 GHz – 2T2R, 5 GHz – 2T2R
- Ethernet Port: 1× 10/100 Mbps RJ45
- Coverage Range: Up to 150 m (492 ft)
- Functions: Wi-Fi Extender / Access Point (2-in-1)
- Power Input: AC 100V–240V, Plug-in
- Security: WPA-PSK/WPA2-PSK, OPEN
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Dimensions: 129.6×80×48.6 mm (5.1×3.15×1.91 in)
- Weight: 205–210 g (depending on region)
- Installation: Plug-In-Socket
- Certifications: FCC, CE
Dual-Band Wi-Fi for High-Speed Connectivity
The Cudy RE1200 AC1200 Dual Band Mesh Range Extender supports both 2.4 GHz and 5 GHz frequencies, providing combined speeds of 1200 Mbps. The 2.4 GHz band delivers stable coverage for everyday browsing and smart home devices, while the 5 GHz band offers faster speeds ideal for streaming HD videos, online gaming, and large file transfers. This dual-band technology ensures that multiple devices can connect simultaneously without slowing down the network, making it perfect for modern homes and offices with heavy internet usage.
Extended Wi-Fi Coverage
With a maximum range of up to 150 meters (492 feet) in open-space environments, the RE1200 effectively eliminates dead zones and improves Wi-Fi performance throughout large homes or office spaces. Its signal strength can penetrate two wooden walls or one concrete wall while maintaining a strong and reliable connection. This extended coverage ensures that devices in far corners of the building remain connected without interruptions or drops in speed.
2-in-1 Wi-Fi Extender and Access Point
The RE1200 features a 2-in-1 design, functioning both as a Wi-Fi extender and a wireless access point. As an extender, it amplifies the existing Wi-Fi signal, expanding coverage to areas with weak connectivity. In access point mode, it creates a new Wi-Fi hotspot by connecting to a wired network, providing flexible deployment options to suit different environments and user needs.
External Antennas for Reliable Performance
Equipped with two external 5dBi antennas, the RE1200 ensures faster and more stable Wi-Fi coverage. These antennas can be adjusted to optimize signal direction and strength, reducing interference from other devices. The external design helps maintain consistent connectivity, even when multiple devices are connected, enhancing overall network performance and reliability.
Ethernet Port for Wired Devices

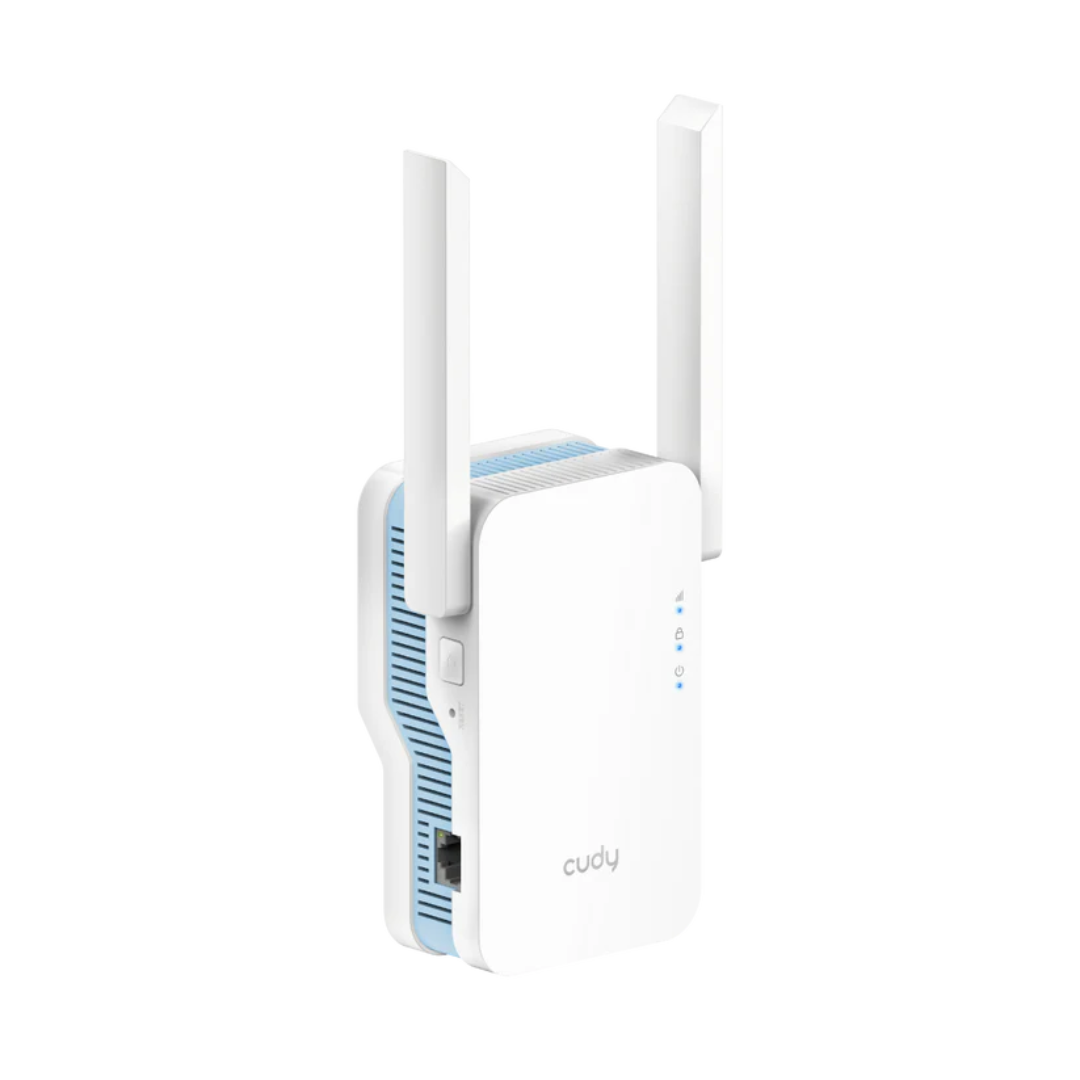

The RE1200 includes one fast Ethernet port (10/100 Mbps), allowing users to connect wired devices such as gaming consoles, smart TVs, or desktop computers. This feature ensures that devices that require a stable and high-speed connection can benefit from wired performance, complementing the wireless capabilities of the range extender and providing versatile connectivity options.
Easy Setup and Mesh Compatibility
Setup is quick and straightforward with the WPS button, allowing users to instantly expand their Wi-Fi network without complicated configurations. Additionally, the RE1200 supports Cudy Mesh technology, which enables seamless integration with other Cudy Mesh devices for a unified network experience. Features like multi-band simultaneous backhaul and Ethernet backhaul further enhance performance and network stability across multiple devices.
Compact Design and Energy Efficiency
The RE1200 is designed to be compact and convenient, with plug-in AC power input suitable for EU, US, and UK regions. Its small footprint and lightweight design make it easy to install in any location without occupying much space. Operating efficiently within a temperature range of 0°C to 40°C, it ensures reliable performance while maintaining energy efficiency, making it a practical choice for homes and offices.
