Description

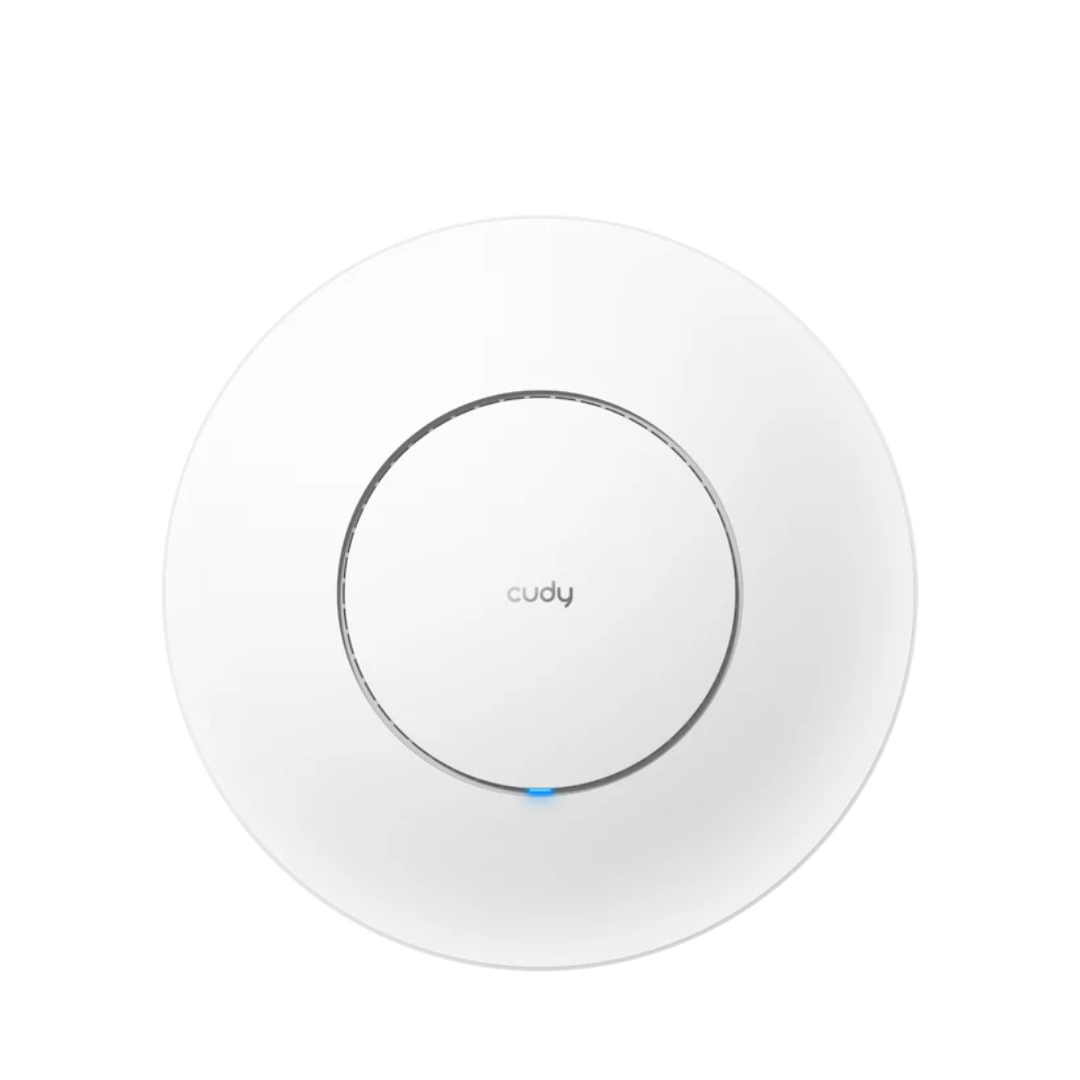

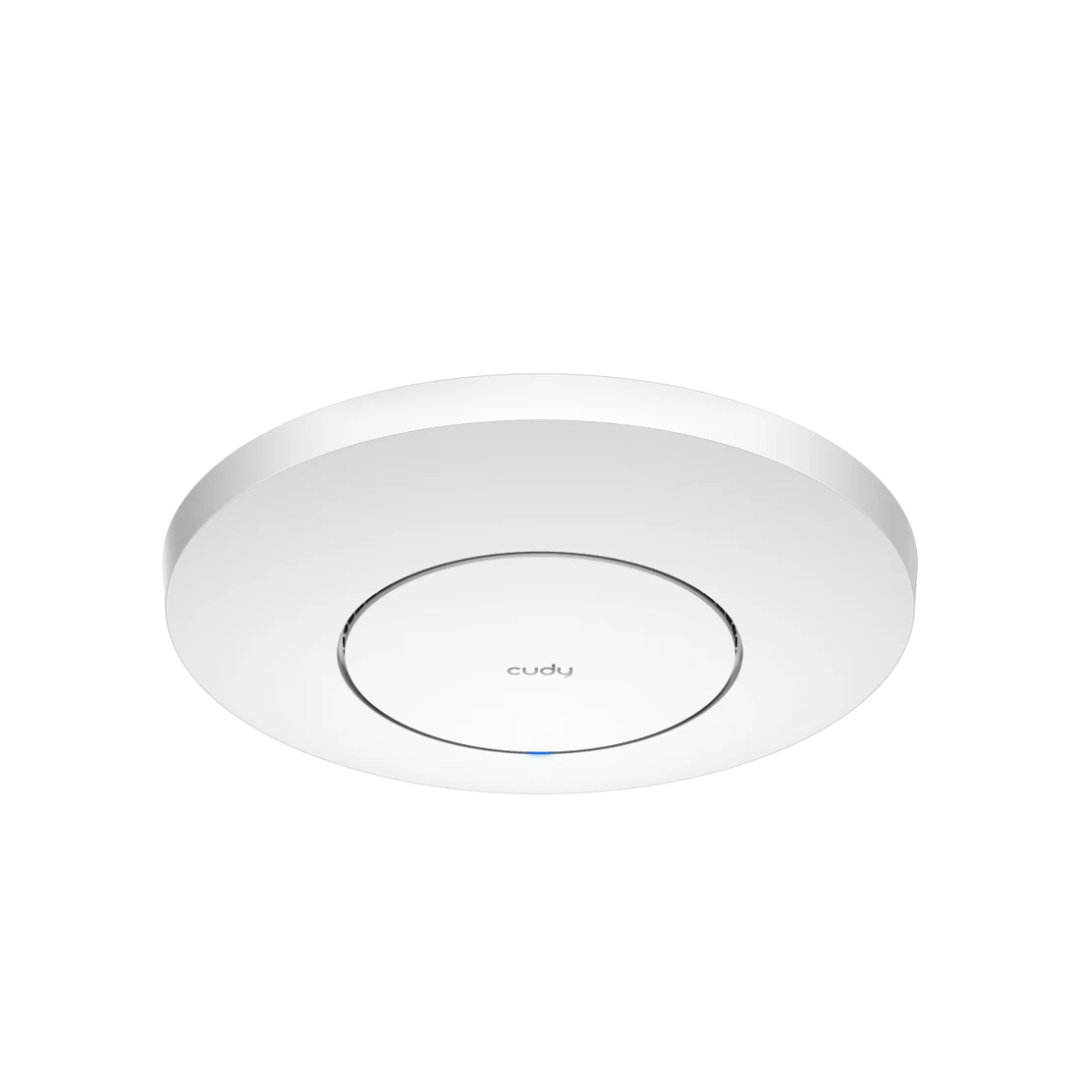

The Cudy AP3000 Indoor AX3000 Wi-Fi 6 Access Point is a high-performance networking solution designed to deliver fast, stable, and efficient wireless connectivity in modern indoor environments. Powered by Wi-Fi 6 (IEEE 802.11ax) technology, this dual-band access point provides combined wireless speeds of up to 3000 Mbps, including 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. This advanced wireless capability ensures smooth performance for bandwidth-intensive tasks such as HD streaming, video conferencing, and online collaboration while maintaining reliable connectivity for multiple users.
At the core of the device is a 1.3 GHz dual-core processor paired with 512MB DDR4 RAM and 256MB NAND storage, ensuring efficient data handling and stable network operation even during heavy usage. The access point also features 4-stream dual-band Wi-Fi with MU-MIMO and OFDMA technology, which improves network efficiency by allowing multiple devices to communicate simultaneously with reduced latency. With five high-gain internal antennas and beamforming technology, the AP3000 enhances signal strength and coverage, providing reliable wireless connectivity across indoor spaces up to 130 m² (1,400 sq ft) and supporting up to 300 connected devices.
For installation flexibility, the device includes a shielded 2.5GbE PoE-enabled Ethernet port, supporting 802.3at/af PoE, passive PoE, and 12V DC power. Its ceiling or wall-mount design, combined with advanced security features like WPA3 encryption and SPI firewall protection, makes it ideal for offices, hotels, classrooms, and transportation hubs that require fast and secure wireless networking.
Specification
- Brand: Cudy
- Model: AP3000
- Network Standard: IEEE 802.11ax (Wi-Fi 6)
- Wireless Speed: Up to 3000 Mbps (2402 Mbps on 5GHz, 574 Mbps on 2.4GHz)
- Frequency Band: Dual Band (2.4 GHz & 5 GHz)
- Processor: 1.3 GHz Dual-Core CPU (MT7981BA)
- Memory: 512MB DDR4 RAM
- Storage: 256MB NAND Flash
- Antenna: 5× Internal Antennas (5.6 dBi for 5GHz, 4.8 dBi for 2.4GHz)
- Ethernet Port: 1× 2.5G RJ45 PoE In Port
- Wireless Technologies: MU-MIMO, OFDMA, Beamforming, 1024-QAM
- Security: WPA, WPA2, WPA3 Encryption, SPI Firewall, DoS Protection
- Operating Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client
- Power Supply: DC 12V/1.5A, 802.3at/af PoE, Passive PoE (48V)
- Max Power Consumption: 12W
- Coverage Area: Up to 130 m² (1,400 sq ft)
- Device Capacity: Up to 300 Connected Devices
- Mounting: Ceiling Mount / Wall Mount
- Dimensions: 231.9 × 57.1 mm
- Weight: 494 g
- Color: White
- Operating Temperature: -10°C to 60°C
- Operating Humidity: 10% – 90% Non-Condensing
AX3000 Dual-Band Wi-Fi 6 Performance
The Cudy AP3000 is built with advanced Wi-Fi 6 (IEEE 802.11ax) technology, delivering a combined wireless speed of up to 3000 Mbps across dual frequency bands. It provides 2402 Mbps on the 5 GHz band for high-speed tasks like streaming, gaming, and large file transfers, while the 574 Mbps 2.4 GHz band ensures reliable connectivity for everyday browsing and smart devices. This dual-band architecture allows the access point to efficiently distribute network traffic, minimizing congestion and providing faster, smoother connectivity even when multiple users are connected simultaneously.
High-Performance Hardware with Powerful Processing
The device is powered by a 1.3 GHz dual-core processor (MT7981BA) that ensures stable and responsive network management even under heavy workloads. Complementing the processor is 512MB DDR4 RAM and 256MB NAND storage, which enables the access point to efficiently manage connected devices, handle multiple processes, and maintain consistent network performance. This strong hardware configuration allows the AP3000 to deliver reliable connectivity in demanding environments where multiple users require uninterrupted internet access.
Advanced Wi-Fi Efficiency Technologies
To maximize network efficiency, the AP3000 incorporates advanced technologies such as MU-MIMO and OFDMA. MU-MIMO enables the access point to communicate with several devices at the same time instead of serving them sequentially, significantly improving overall network speed and responsiveness. Meanwhile, OFDMA divides wireless channels into smaller sub-channels, allowing multiple devices to transmit data simultaneously with reduced latency. Together with 1024-QAM modulation, these technologies ensure faster data transmission and a more stable connection for modern high-density networks.
Enhanced Coverage with Internal High-Gain Antennas
The Cudy AP3000 is equipped with five high-performance internal antennas designed to deliver wider and more stable wireless coverage. With antenna gains of 5.6 dBi on the 5 GHz band and 4.8 dBi on the 2.4 GHz band, the access point provides strong signal penetration across indoor environments. It also supports beamforming technology, which intelligently directs wireless signals toward connected devices rather than broadcasting them evenly in all directions. This improves signal strength, extends coverage, and reduces dead zones within offices, classrooms, or large indoor spaces.
High-Speed 2.5GbE Port with Flexible Power Options

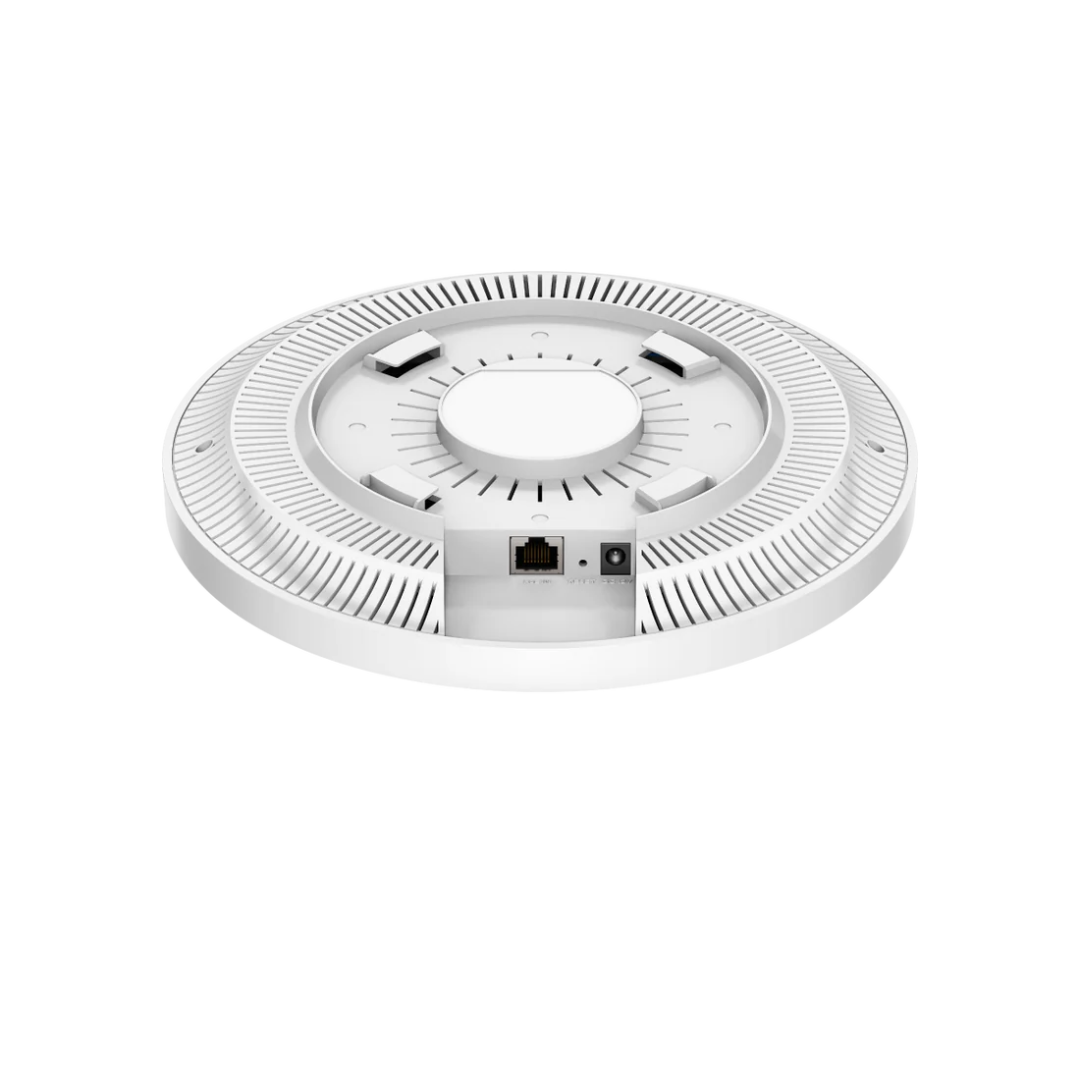

For wired connectivity and high-speed backhaul, the AP3000 features a shielded 2.5GbE RJ45 Ethernet port that supports ultra-fast data transfer and stable network integration. The port also supports Power over Ethernet (PoE), including 802.3at/af PoE and passive PoE, allowing both power and data to be delivered through a single cable. Additionally, the access point can be powered through a 12V DC input, giving installers flexible deployment options and simplifying network infrastructure in professional environments.
Support for High-Density Device Connectivity
Designed for environments where many users connect simultaneously, the AP3000 can support up to 300 connected devices without compromising performance. The combination of Wi-Fi 6 efficiency, powerful hardware, and optimized traffic handling ensures stable connectivity for smartphones, laptops, tablets, and IoT devices. This capability makes it suitable for busy areas such as offices, lecture halls, hotels, and transportation hubs where reliable wireless coverage is essential for productivity and communication.
Flexible Installation and Professional-Grade Management

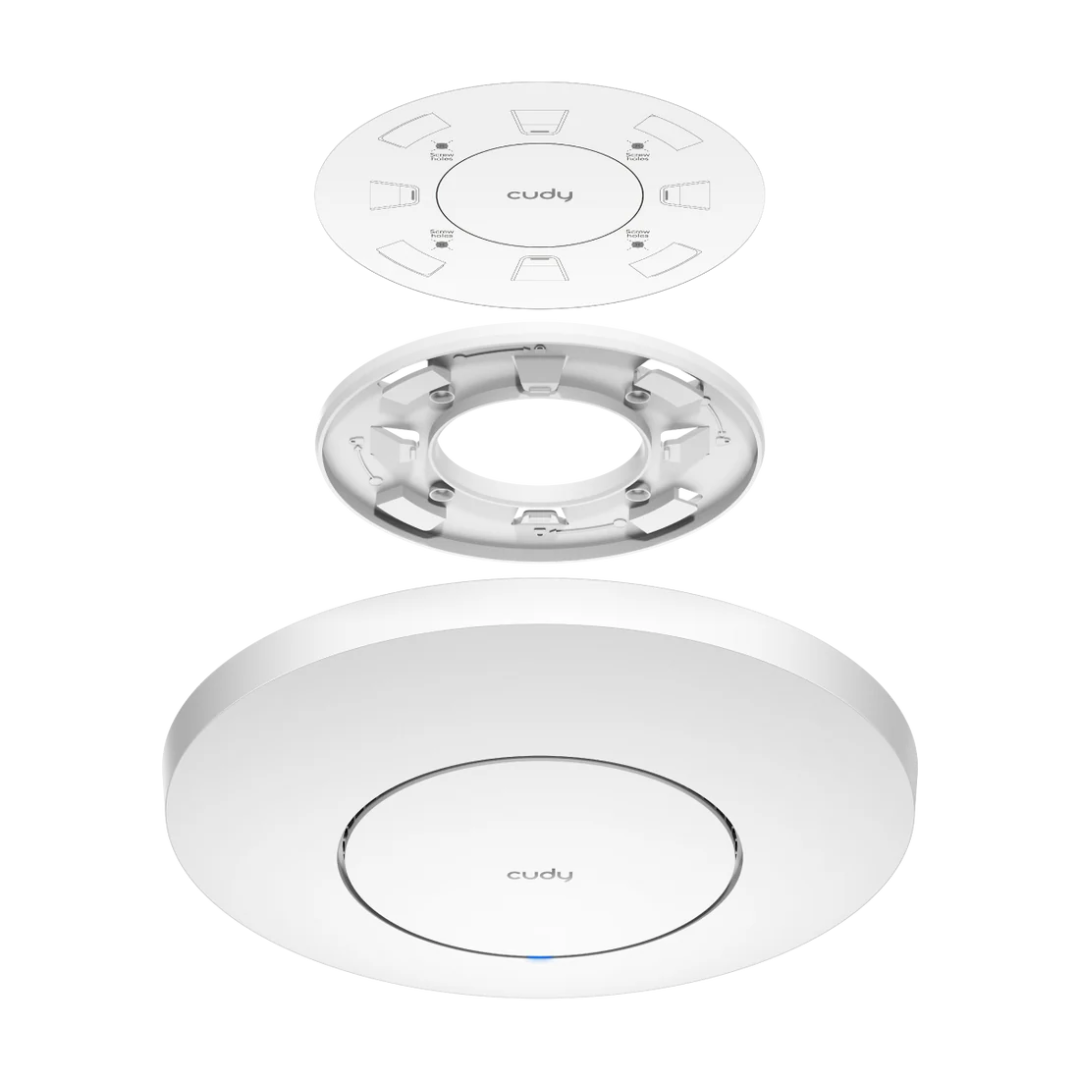

The Cudy AP3000 is designed for convenient installation with ceiling-mount and wall-mount options, making it easy to integrate into various indoor environments while maintaining a clean and professional look. It also supports multiple operating modes including Access Point, Wi-Fi Router, Range Extender, WISP, and Client mode, allowing it to adapt to different network setups. With advanced management features such as device management, content filtering, scheduling, remote management via HTTPS, and app control, administrators can efficiently monitor, configure, and maintain the network for secure and reliable operation.
