Description
The CUDY AP1300 Wall Dual Band AC1200 Wall-Plate Gigabit Wi-Fi Access Point is a sleek and compact solution designed for hotels, dormitories, apartments, and offices, providing strong and reliable Wi-Fi coverage for individual rooms or units. Supporting 4-Stream Dual-Band Wi-Fi 5, it delivers speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, ensuring smooth 4K streaming, video calls, and web browsing. With a coverage of up to 60 m² (650 ft²), it accommodates up to 40 connected devices, making it ideal for both hospitality and office environments.
Equipped with a built-in 5-port Gigabit Ethernet switch (1× PoE in, 1× PoE out, 3× standard GbE ports), the AP1300 Wall supports PoE passthrough, allowing you to power devices like IP phones or VoIP systems directly. It is compatible with 802.3af/at and passive PoE, offering flexible deployment options. The access point features hardware watchdog, scheduled reboot, and beamforming, ensuring stable and continuous network performance.
Easy to install with wall-mount design and compact dimensions of 143×86×27.6 mm, the AP1300 Wall supports MU-MIMO, multi-SSID, and Cudy Mesh for seamless connectivity. Managed via web interface or app, it provides tools like captive portal, network diagnostics, and firmware updates.
Specification
- Model Version: AP1300 Wall 1.0
- CPU: 880 MHz Dual-Core CPU
- Memory/Storage: 16 MB NOR Flash, 128 MB DDR3 RAM
- Wi-Fi Standard: Wi-Fi 5 (AC1200)
- 5 GHz Wi-Fi Speed: 867 Mbps
- 2.4 GHz Wi-Fi Speed: 300 Mbps
- Wi-Fi Streams: 2T2R (2×2 MIMO) on both 5 GHz and 2.4 GHz
- Wi-Fi Antennas: 2× Internal (5 GHz: 5.6 dBi, 2.4 GHz: 5.0 dBi)
- Beamforming: True
- Coverage: Up to 60 m² (650 ft²)
- Maximum Wi-Fi Range: 80 m (262 ft) in open-space
- Gigabit RJ45 Ports: 5 (1× PoE In, 1× PoE Out, 3× GbE)
- Power Methods: 802.3af/at PoE, Passive PoE (48V)
- Max Power Consumption: 12 W (PoE)
- Idle Power Consumption: 4 W
- Advanced Features: Hardware Watchdog, Scheduled Reboot
- Installation: Wall-mount
- Dimensions: 143×86×27.6 mm (5.63×3.39×1.09 inches)
- Weight: 261.2 g (9.21 oz.)
- Wi-Fi Security: WPA/WPA2/WPA3, Multi-SSID (up to 8 SSIDs)
- Maximum Clients: Recommended up to 40 devices
- Management: Web Page, App Control, Remote HTTPS
- Mesh Support: Wireless and Wired Backhaul, Multi-Band Backhaul
- Certifications: FCC, CE
Dual-Band AC1200 Wi-Fi Performance
The CUDY AP1300 Wall delivers Dual-Band AC1200 Wi-Fi, combining speeds of 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. This configuration allows high-speed data transfer for demanding applications such as 4K video streaming, online gaming, and large file transfers. With 4-stream Wi-Fi (2T2R on both bands) and MU-MIMO technology, multiple devices can connect simultaneously without slowing down the network. Beamforming ensures the Wi-Fi signal is focused directly toward connected devices, improving coverage, stability, and overall performance in complex environments.

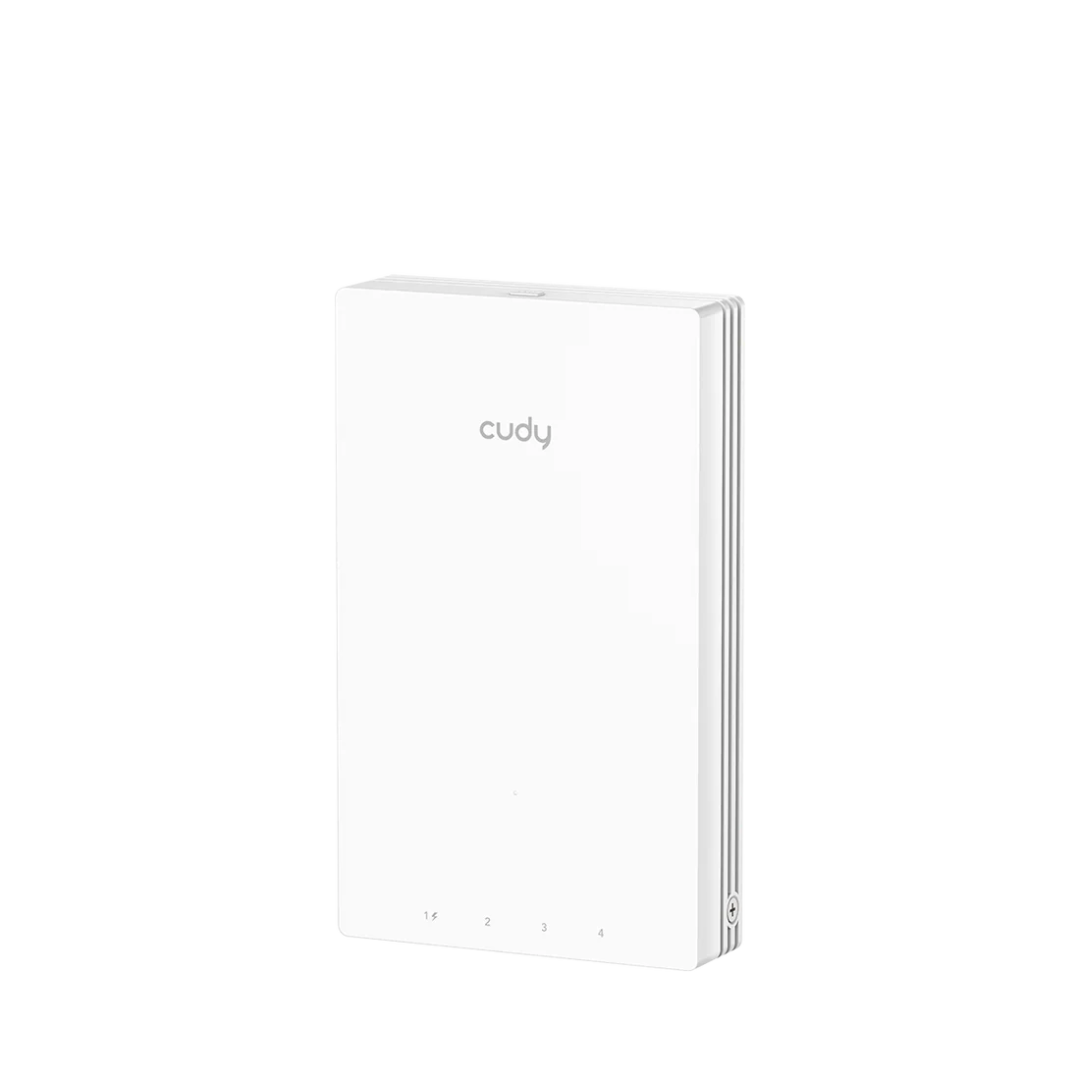

Compact Wall-Mount Design
Designed for modern interiors, the AP1300 Wall is a low-profile wall-mounted access point that fits seamlessly into hotels, dormitories, offices, and apartments. Its dimensions of 143×86×27.6 mm make it unobtrusive while still providing robust Wi-Fi coverage. This wall-mount design not only optimizes space but also ensures the access point can be installed closer to users, enhancing signal strength and reducing dead zones in individual rooms or units.

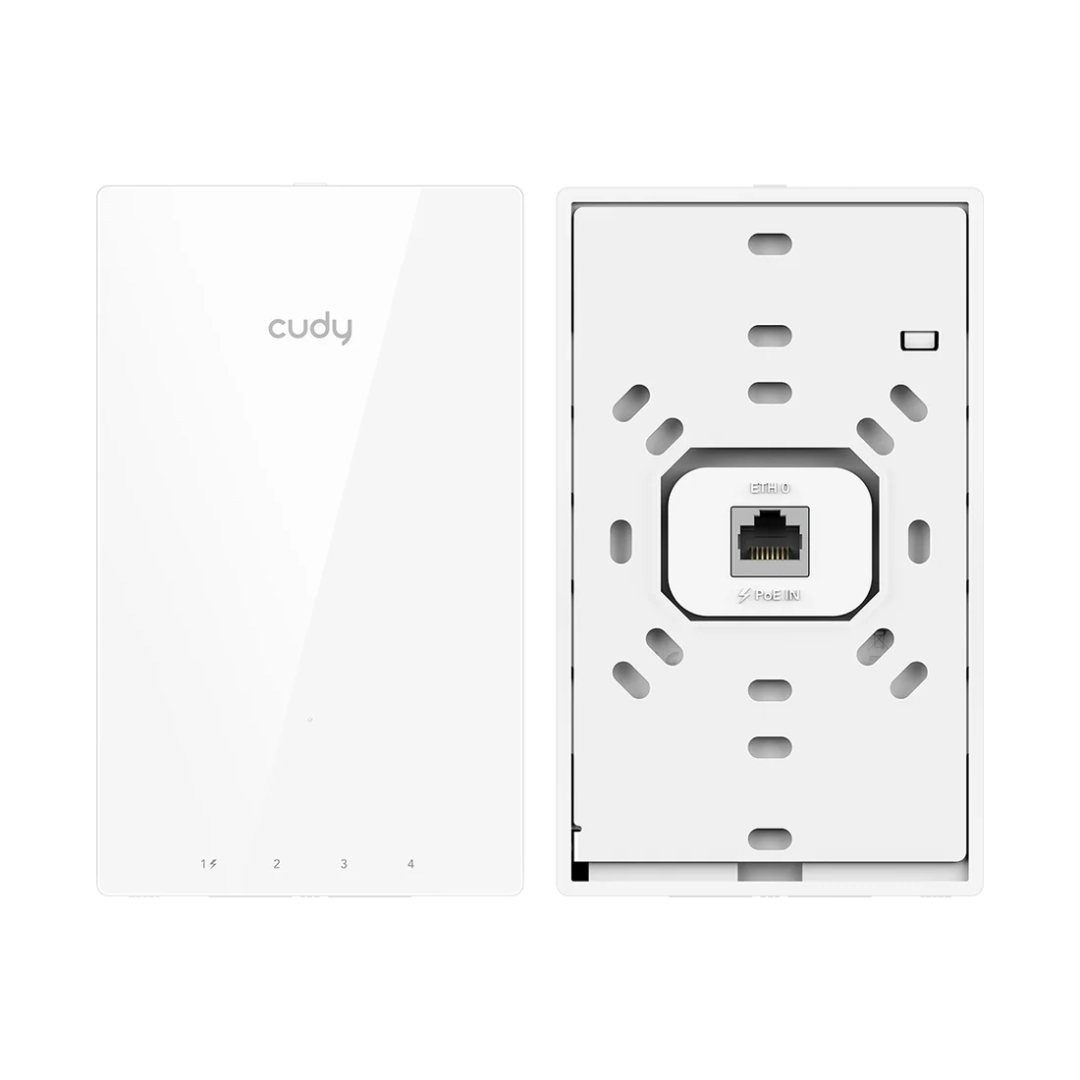

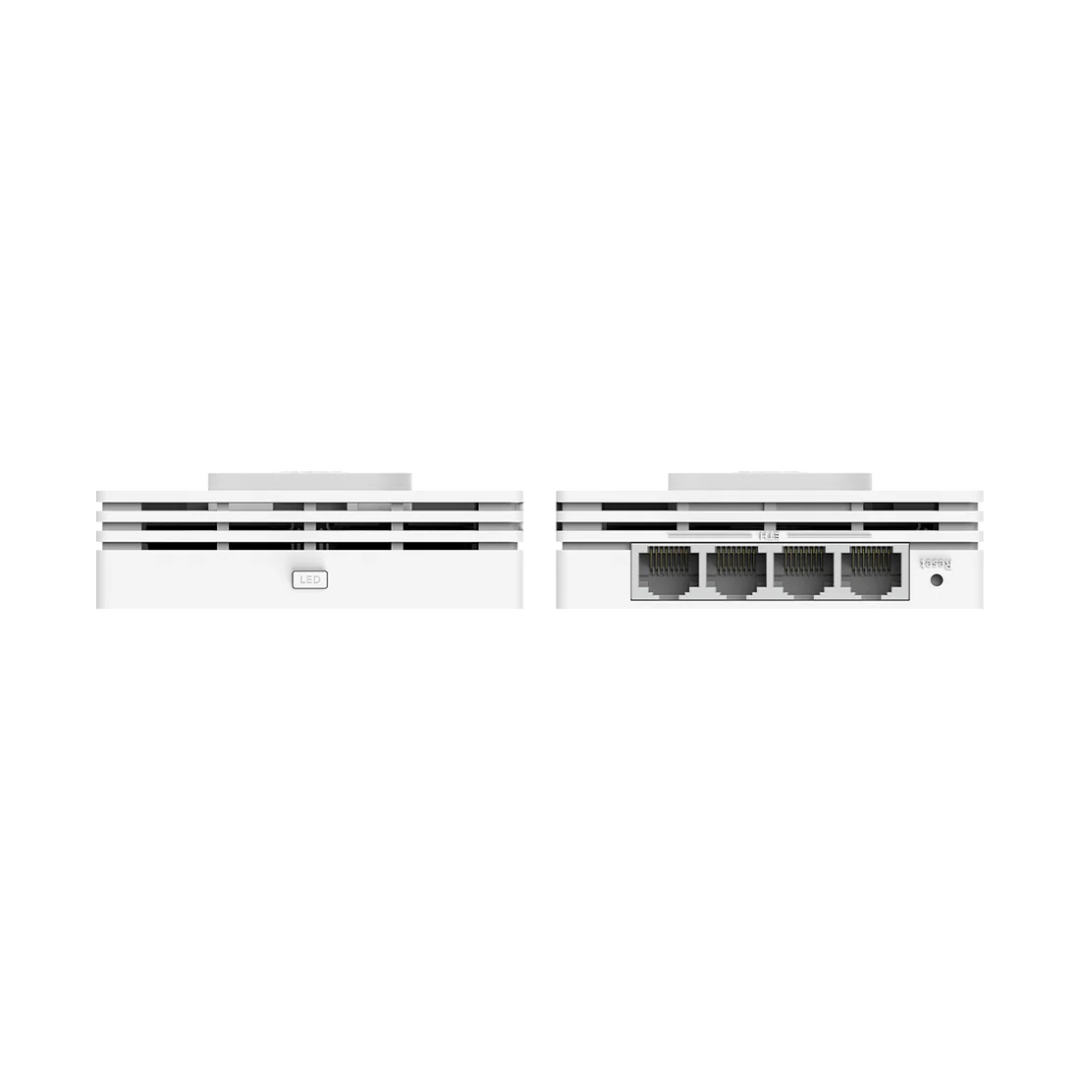

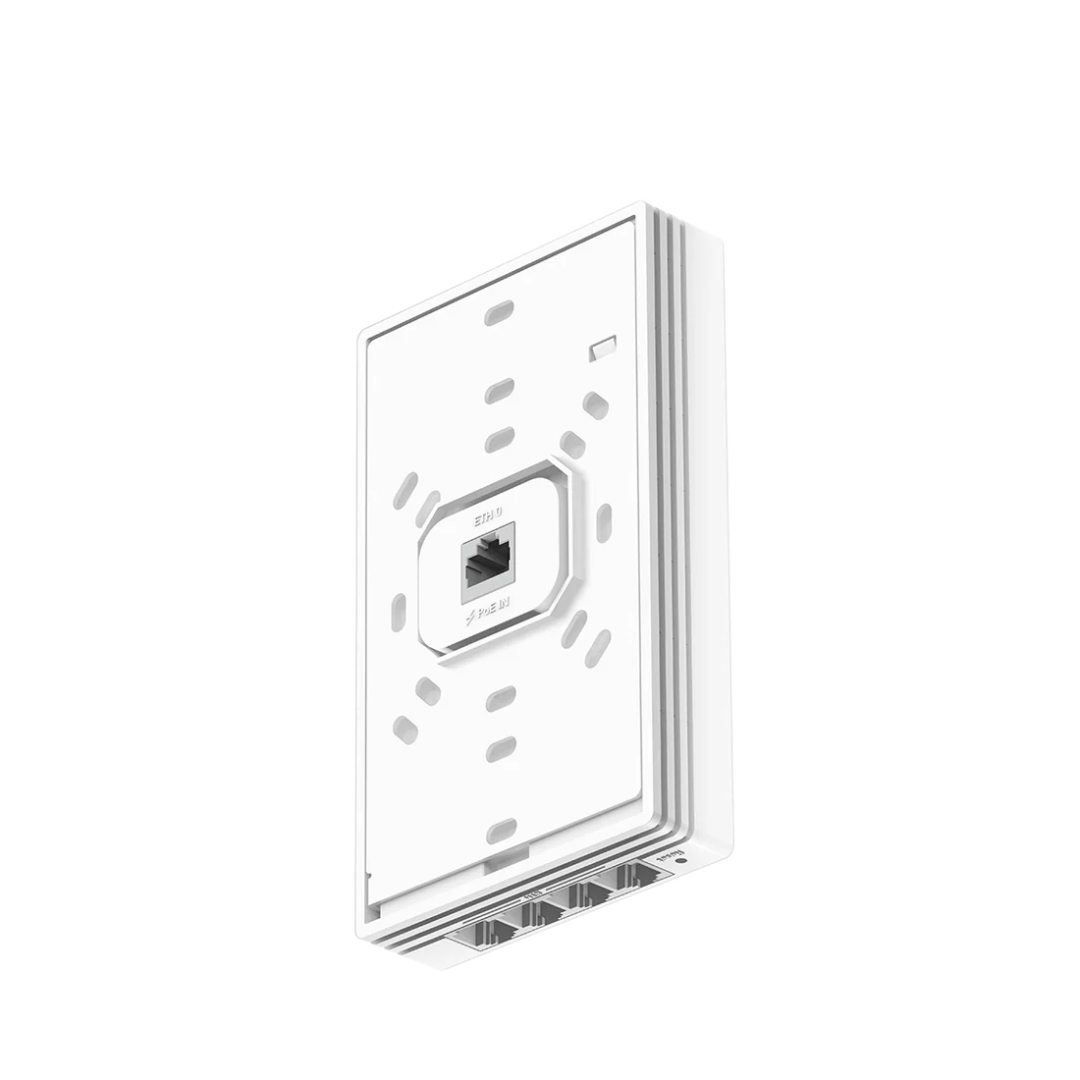

Built-in Gigabit Ethernet Switch with PoE
The AP1300 Wall features a 5-port Gigabit Ethernet switch, including 1× PoE input, 1× PoE output, and 3× standard GbE ports. The PoE passthrough functionality allows you to power additional devices such as IP phones, VoIP systems, or IPTV units directly from the access point, reducing the need for extra power outlets and simplifying cabling. It supports 802.3af/at and passive PoE (48V) standards, providing flexible deployment options for both new and existing network infrastructures.
Reliable Coverage and Range
With a maximum coverage of 60 m² (650 ft²) and a tested range of up to 80 m (262 ft) in open spaces, the AP1300 Wall ensures consistent and reliable Wi-Fi throughout a room or workspace. Its performance is optimized for common wall materials, including wooden walls less than 10 cm thick and concrete walls less than 20 cm thick, making it ideal for apartment layouts, offices, or hotel rooms. This ensures minimal signal interference and maintains high-speed connectivity for all users.
Advanced Management and Monitoring
The access point supports local and remote management through a web interface or mobile app, giving administrators full control over network settings. Features include Wi-Fi scheduling, firmware updates, captive portal configuration, and diagnostic tools such as ping, traceroute, and system logs. Multi-SSID support allows the creation of up to 8 separate networks, providing flexible segmentation for guest access or departmental networks while keeping traffic secure and isolated.
Smart Reliability Features
The AP1300 Wall is equipped with hardware watchdog and scheduled reboot functionality, ensuring stable network operation without manual intervention. These reliability features prevent downtime due to software errors or connectivity issues, making the device particularly suitable for hospitality, education, and office environments where continuous access is critical. The device also meets ESD standards (contact 4 kV, air 8 kV), enhancing durability and operational safety.
Cudy Mesh and Flexible Backhaul
For larger installations, the AP1300 Wall supports Cudy Mesh technology, allowing multiple access points to connect seamlessly through wired or wireless backhaul. The multi-band backhaul ensures high-speed data transfer between nodes without interfering with client devices, creating a scalable and efficient network. This flexibility makes it easy to expand coverage in hotels, office buildings, or campus environments while maintaining a strong, stable Wi-Fi experience for all users.
