Description

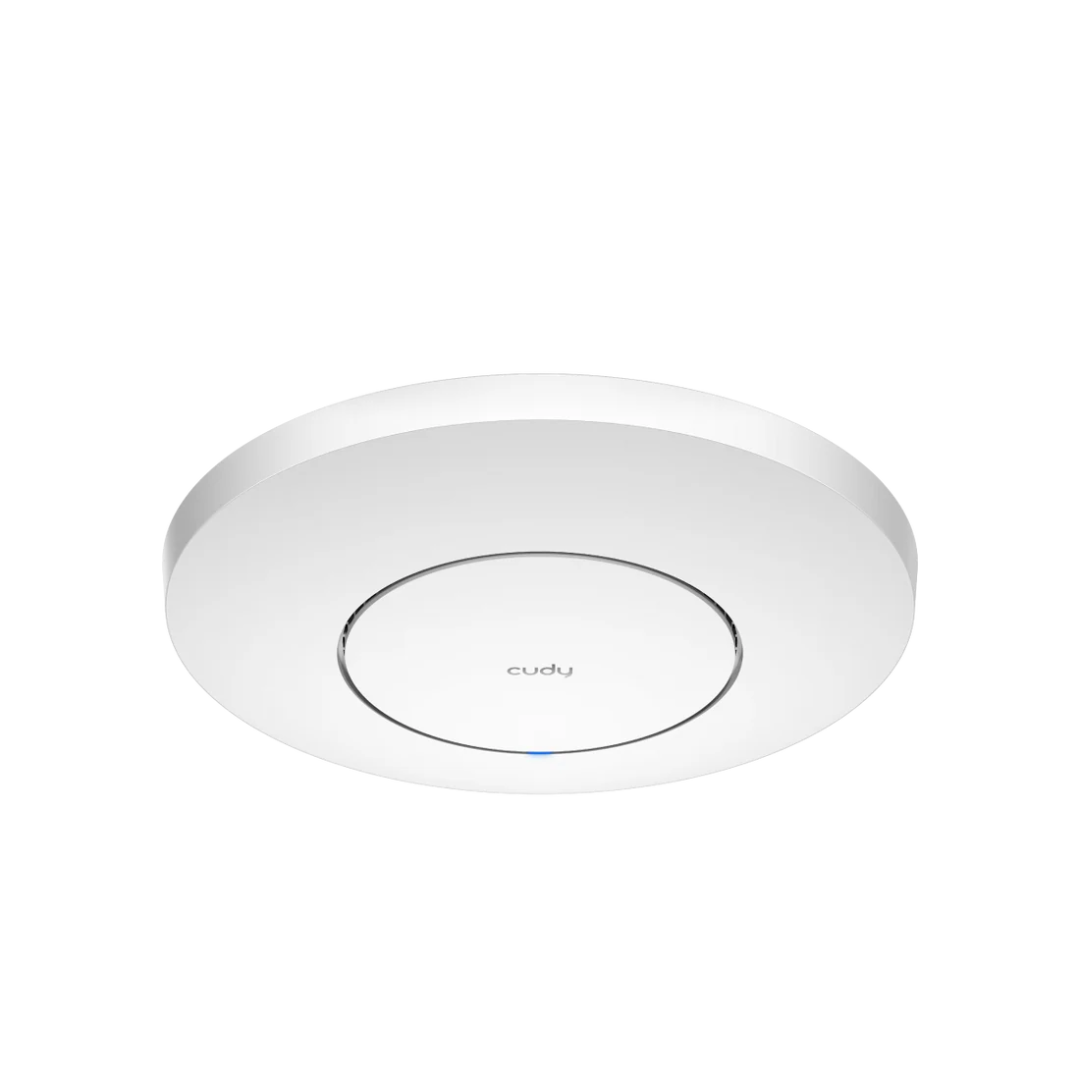

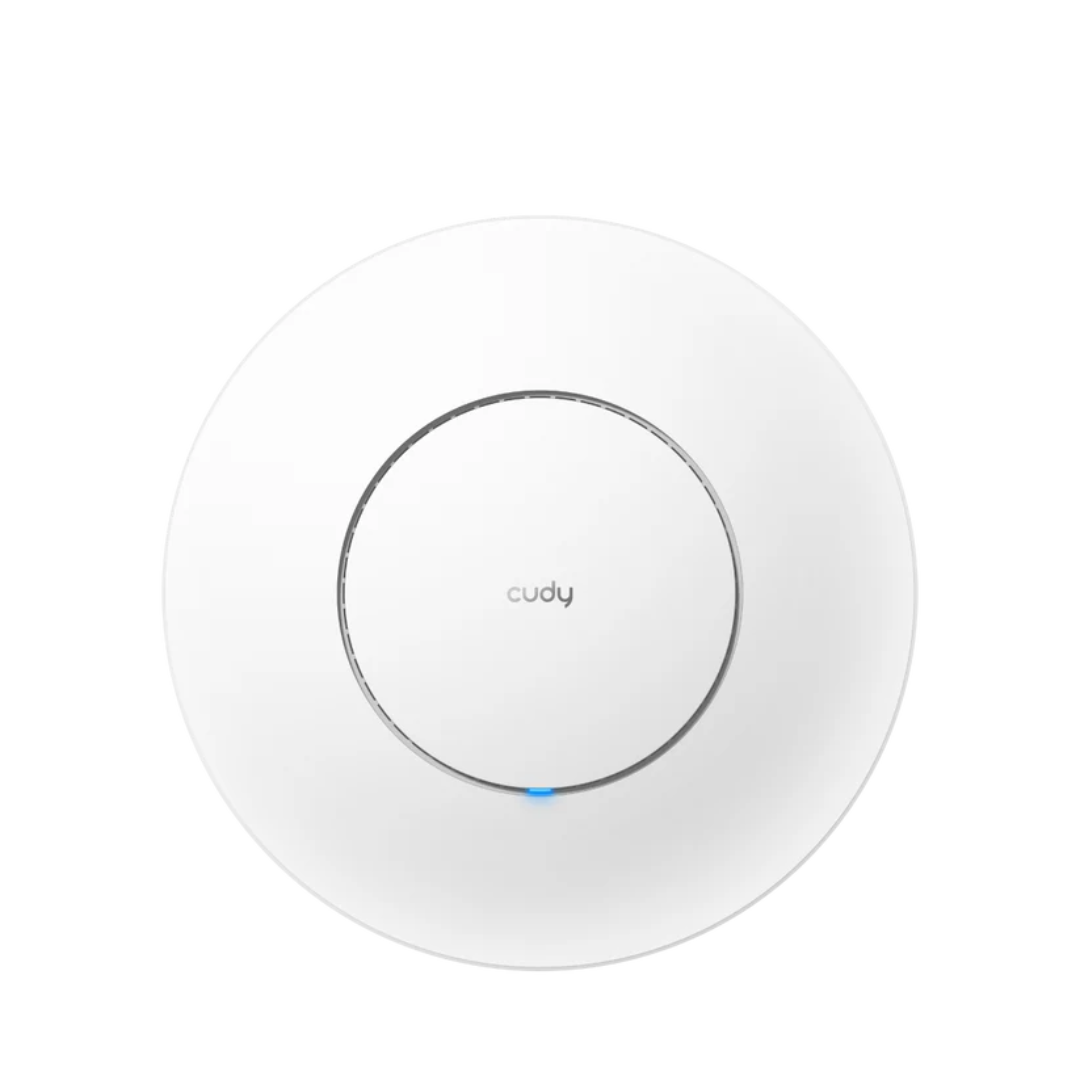

The Cudy AP1300 Indoor AC1200 Dual Band Ceiling Mount Gigabit Wi-Fi Access Point is designed to deliver stable, high-speed wireless connectivity for homes, offices, and commercial environments. Powered by an 880 MHz dual-core processor, along with 128 MB DDR memory and 16 MB flash, the device ensures reliable performance even when multiple devices are connected simultaneously. It supports Wi-Fi 5 (802.11ac/n/g/b/a) standards and operates on both 2.4 GHz and 5 GHz frequencies, providing combined AC1200 wireless speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for smooth browsing, streaming, and online communication.
Equipped with 4 internal omni-directional antennas, the AP1300 offers strong and stable signal coverage across open indoor spaces. The device also features MU-MIMO technology, allowing simultaneous communication with multiple devices to improve network efficiency in busy environments. Beamforming technology further enhances wireless coverage by directing signals toward connected devices, ensuring better performance and stability.
For flexible deployment, the AP1300 supports multiple operating modes including Access Point, Router, Range Extender, and WISP, making it suitable for different networking scenarios. It also includes advanced wireless features such as Seamless Roaming Mesh, Captive Portal, Band Steering, and Auto Channel Optimization, enabling smarter and more efficient network management. With PoE support, a Gigabit Ethernet port, and ceiling or wall mounting options, the Cudy AP1300 offers a practical and powerful solution for expanding indoor wireless networks.
Specification
- Model: AP1300 Indoor
- Wireless Standard: Wi-Fi 5 (802.11ac/n/g/b/a)
- Wi-Fi Speed: AC1200 (Up to 867 Mbps on 5 GHz, Up to 300 Mbps on 2.4 GHz)
- Frequency Bands: 2.4 GHz & 5 GHz
- Antenna: 4× Internal Omni-directional Antennas
- Processor: 880 MHz Dual-Core CPU
- Memory: 128 MB DDR
- Flash Storage: 16 MB

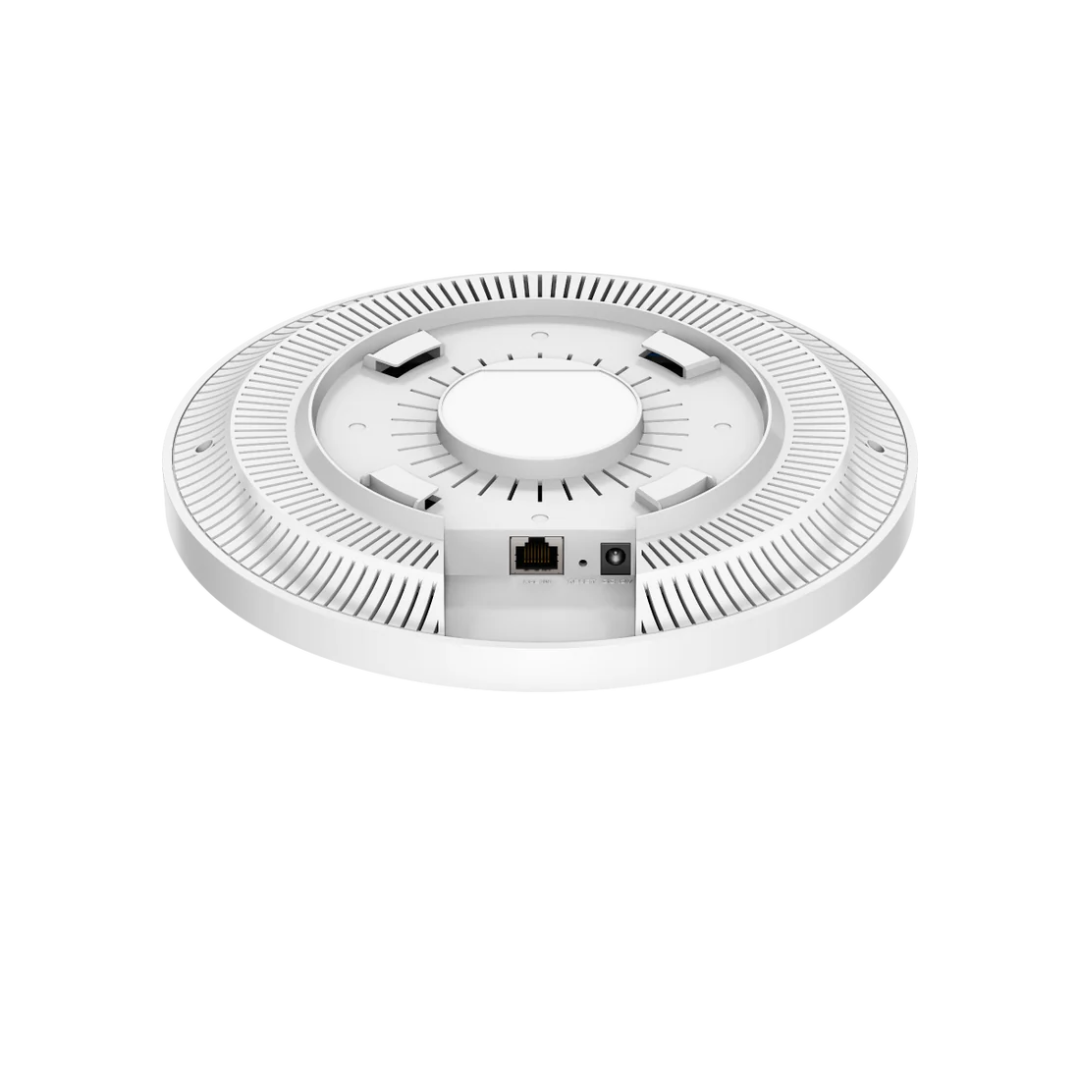

- Ethernet Port: 1× Gigabit Ethernet Port (PoE In)
- Operating Modes: AP / Router / Range Extender / WISP
- Channel Width: 20 / 40 / 80 MHz
- Wireless Technologies: MU-MIMO, Beamforming, Band Steering, Seamless Roaming Mesh
- Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
- Power Supply: 802.3af/at PoE, 24–57V Passive PoE, 12V ⎓ 1A DC
- Power Consumption: Idle 4W, PoE Max 11W, DC Max 7.5W

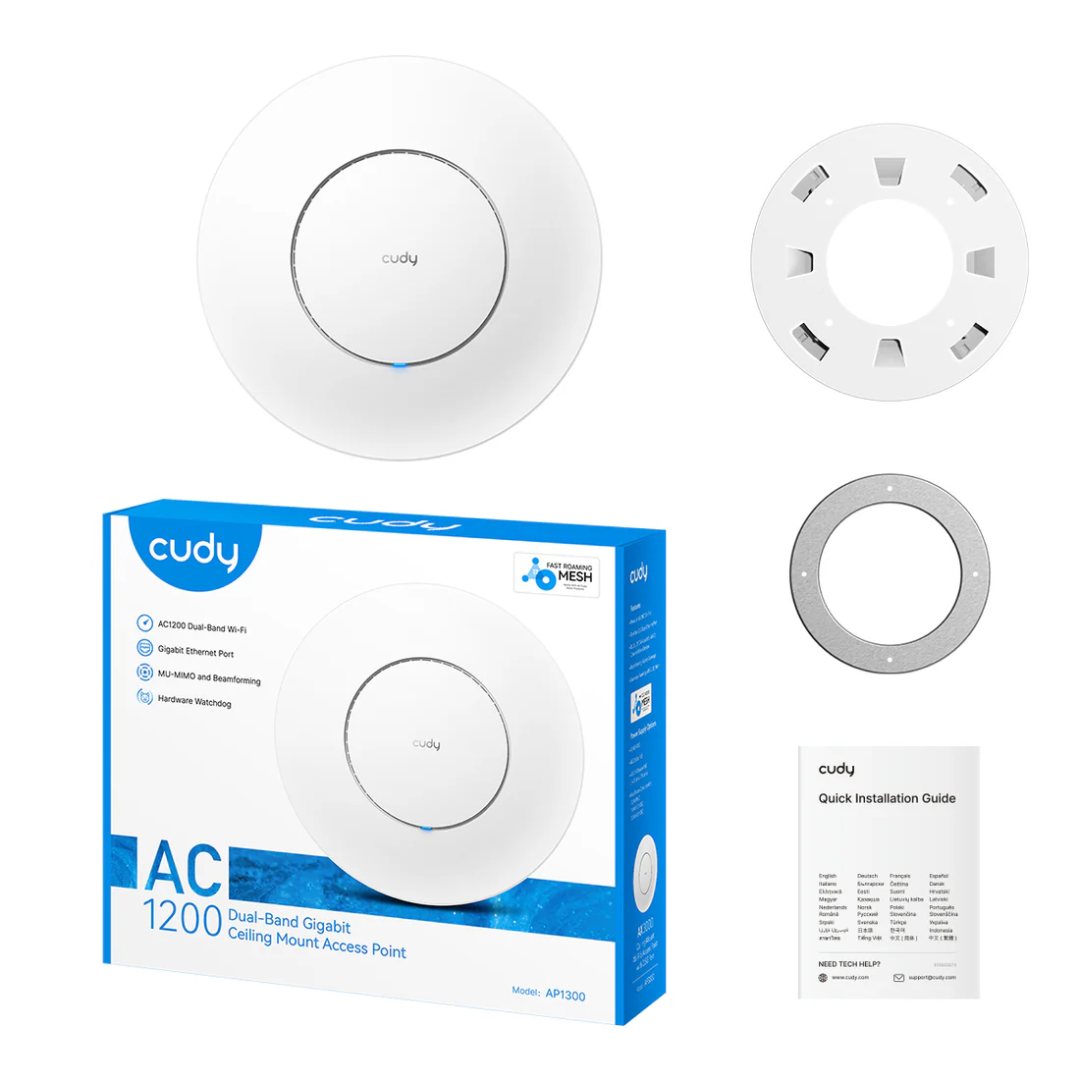

- Mounting: Ceiling / Wall Mount (Mounting Kit Included)
- Dimensions: 232 × 232 × 57.1 mm
- Operating Temperature: 0°C to 40°C
AC1200 Dual-Band High-Speed Wireless Performance
The Cudy AP1300 Indoor Access Point delivers reliable and high-speed wireless connectivity with its AC1200 dual-band Wi-Fi capability. Operating on both 2.4 GHz and 5 GHz frequency bands, the device provides a combined wireless speed of up to 1200 Mbps, including 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. This dual-band functionality helps distribute network traffic efficiently, reducing congestion and ensuring smoother data transmission. The 2.4 GHz band is ideal for wider coverage and compatibility with older devices, while the 5 GHz band provides faster speeds for bandwidth-intensive tasks such as HD streaming, online gaming, and large file transfers. This balanced performance ensures stable connectivity for both everyday users and high-demand network environments.
Powerful Hardware with Dual-Core Processing
At the core of the AP1300 is a powerful 880 MHz dual-core processor, designed to manage network operations efficiently and maintain stable performance even when multiple devices are connected. Supported by 128 MB DDR memory and 16 MB flash storage, the access point can handle heavy network traffic without performance slowdowns. This hardware configuration ensures smooth data routing, quick response times, and reliable connectivity across different networking tasks. Whether used in a home, office, or small business environment, the strong internal hardware allows the device to maintain consistent performance while supporting multiple wireless clients simultaneously.
Advanced Wireless Technologies for Better Connectivity
The Cudy AP1300 integrates several advanced wireless technologies to enhance overall network performance and user experience. MU-MIMO (Multi-User Multiple Input Multiple Output) technology allows the access point to communicate with multiple devices simultaneously, rather than sequentially, significantly improving efficiency in busy network environments. Additionally, Beamforming technology helps strengthen the wireless signal by directing it toward connected devices instead of broadcasting it equally in all directions. This results in improved signal stability, stronger connections, and better coverage across the entire area where the access point is installed.
Flexible Multi-Mode Networking Capability
One of the most practical features of the AP1300 is its multi-mode functionality, allowing it to operate in several different networking roles. It supports Access Point Mode, Router Mode, Range Extender Mode, and WISP Mode, giving users the flexibility to deploy the device according to their specific networking needs. In Access Point mode, it expands wired networks into wireless networks. Router mode allows it to function as the main network controller, while Range Extender mode helps expand the coverage of an existing Wi-Fi network. WISP mode enables the device to connect to wireless internet service providers and redistribute the connection locally. This versatility makes the AP1300 suitable for a wide range of networking environments.
Mesh Networking and Seamless Roaming Support
The AP1300 is designed with mesh networking capabilities, enabling multiple access points to work together as a unified wireless system. With Self-Organizing Mesh and Seamless Roaming, users can move throughout a building without experiencing interruptions in their Wi-Fi connection. Devices automatically connect to the access point with the strongest signal, ensuring stable connectivity while walking between rooms or floors. This feature is particularly useful for larger homes, offices, and commercial spaces where continuous connectivity is essential for activities such as video calls, live streaming, and cloud-based work environments.
Smart Wireless Optimization Features
To maintain optimal network performance, the Cudy AP1300 includes several intelligent wireless management features. Band Steering automatically directs compatible devices to the faster 5 GHz band, helping balance network traffic and reduce congestion on the 2.4 GHz band. Auto Channel Optimization detects nearby wireless interference and automatically selects the best channel to maintain strong signal quality. Additional features such as QoS (WMM), transmit power control, rate limiting, and scheduled wireless operations allow administrators to manage bandwidth and optimize network behavior according to usage patterns. These capabilities help ensure stable and efficient Wi-Fi performance in busy network environments.
Flexible Installation with PoE Support

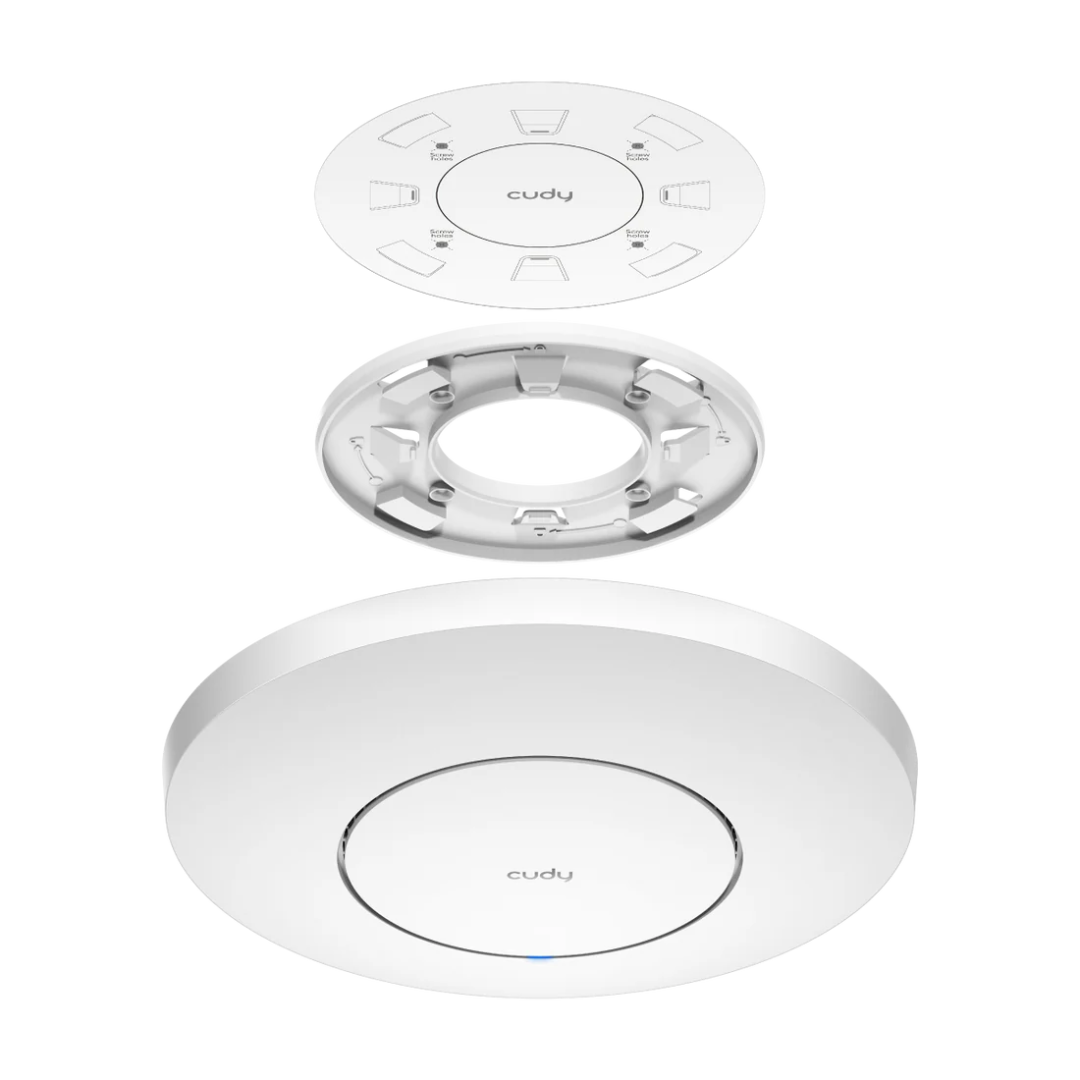

The AP1300 offers flexible installation options designed to simplify deployment in different environments. It features a Gigabit Ethernet port with PoE (Power over Ethernet) support, allowing both power and data to be transmitted through a single Ethernet cable. This eliminates the need for a separate power outlet near the device and makes installation easier in ceilings or high wall positions. The device also supports 802.3af/at PoE, passive PoE, and a 12V DC power supply, providing multiple powering options for different setups. With its ceiling and wall mounting design and included mounting kit, the AP1300 can be conveniently installed to maximize wireless coverage while maintaining a clean and professional appearance.
