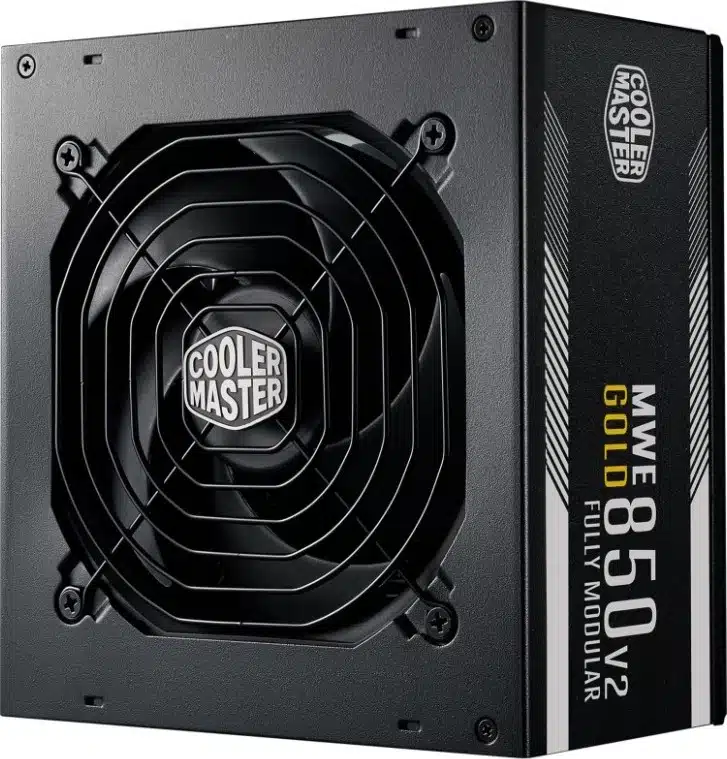

Cooler Master MWE Gold 850 V2 Full Modular 850W 80 Plus Gold Power Supply

Description

80 Plus Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The Cooler Master MWE Gold 850 V2 Full Modular 850W 80 Plus Gold Power Supply delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

2 EPS Connectors

Cooler Master MWE Gold 850 V2 Full Modular 850W 80 Plus Gold Power Supply comes standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you’ll have enough connectors to use your ideal components.

Quiet Cooling

The Cooler Master MWE Gold 850 V2 Full Modular 850W 80 Plus Gold Power Supply has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.

High Temperature Resilience

While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold – V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what’s possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system’s power supply can take the heat.

Full Modular Cabling

The full modular version of the Cooler Master MWE Gold 850 V2 Full Modular 850W 80 Plus Gold Power Supply with a set of flat black cables that can be customized to each user’s individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system’s overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.

Specifications

• Efficiency (Approx.): 90% @ Typical Load
• Certification: 80 PLUS Gold certification,
• Fan Size: 120mm
• FAN Bearing: HDB
• FAN Speed: 1500 RPM
• ATX Version: ATX 12V
• Dimensions (L X W X H): 160 x 150 x 86 mm
• Noise Level @ 20%: 0 dBA
• Noise Level @ 50%: 17.8 dBA
• Noise Level @ 100%: 25.9 dBA
• Operating Temperature: 0-50°C
• HOLD UP TIME: >16ms at 100% Load
• MTBF: >100,000 Hours
• PROTECTIONS: OVP, OPP, OTP, SCP, OCP, UVP
• REGULATORY: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
• Wattage: Above 750W
• Input Voltage: 90-264V
• Frequency Range: 47-63Hz
• Current: 12-6A
• Modular Type: Full Modular
• Total Power: 80 PLUS Gold power
• Power Good Signal: 100 – 150 ms
• Main Power:
  EPS 4+4 PIN CONNECTORS x 1
  EPS 8 PIN CONNECTOR x 1
• CPU: ATX 24-PIN CONNECTORS x 1
• PCI-E: PCI-E 6+2 PIN CONNECTORS x 4
• SATA: 12

Warranty: 05 years
