Cooler Master Masterbox TD500 Mesh ATX Mid Tower Casing

Description

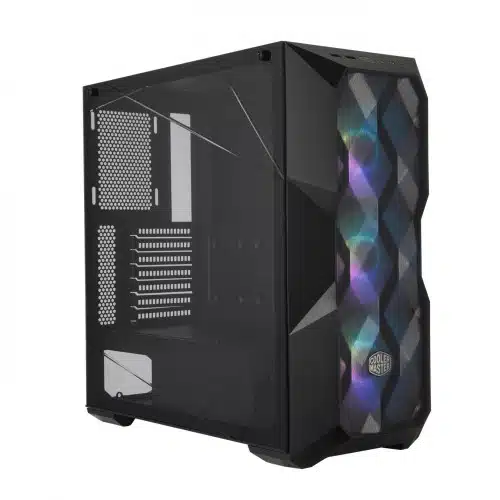

Polygonal Mesh

Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh of Cooler Master Masterbox TD500 Mesh ATX Mid Tower Casing features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration.

Crystalline Tempered Glass

A crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design.

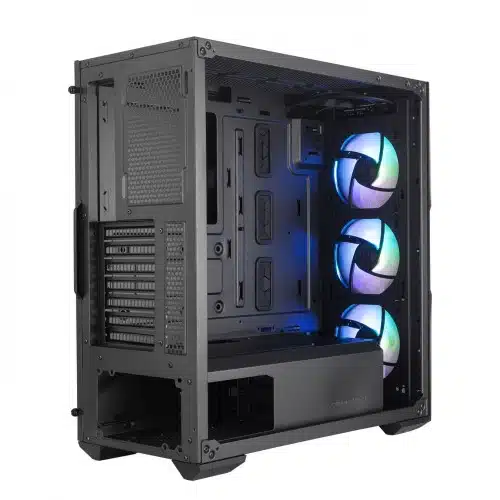

Triple ARGB Fans

Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.

Dual 360mm Radiator Support

For enthusiast-grade cooling, two 360mm radiators are supported by Cooler Master Masterbox TD500 Mesh ATX Mid Tower Casing on the top and front panel to keep the most extreme systems cool.

Versatile Cooling Options

Cooler Master Masterbox TD500 Mesh ATX Mid Tower Casing supports up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

Specifications

• Type: Mid Tower
• Tempered Glass Panel: Yes
• Motherboard Support: Mini ITX, Micro ATX, ATX, E-ATX (support for up to 12″ x 10.7″)
• Color(s): Black
• Weight: 6.95 kg
• Dimensions: 493 x 217 x 469mm
• Front Ports:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
• Expansion Slots: 7
• RADIATOR SUPPORT – TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)
• RADIATOR SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm
• RADIATOR SUPPORT – REAR: 120mm
• FAN SUPPORT – TOP: 3x 120mm, 2x 140mm
• FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
• FAN SUPPORT – REAR: 1x 120mm
• Pre- Installed Fans: 3x 120mm ARGB Fans
• Drive Bays:
  2.5″ / 3.5″ DRIVE BAYS: 2
  2.5″ DRIVE BAYS: 2
• I/O Port:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
  1x ARGB Controller
  1x ARGB 2-to-3 splitter
• PSU: 180mm, 295mm (HDD cage removed)
• Side Panel: Tempered Glass
• Maximum CPU Cooler Height: 165mm
• Maximum Graphics Card Length: 410mm
