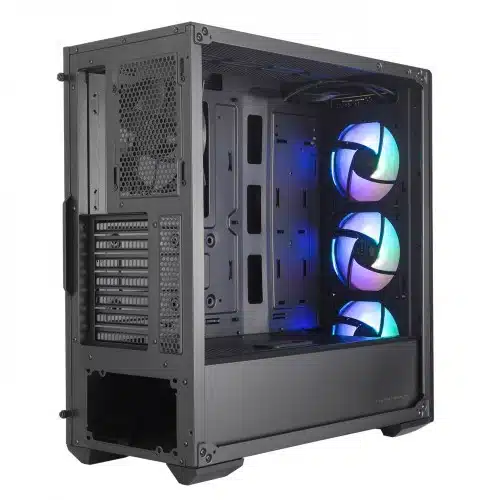

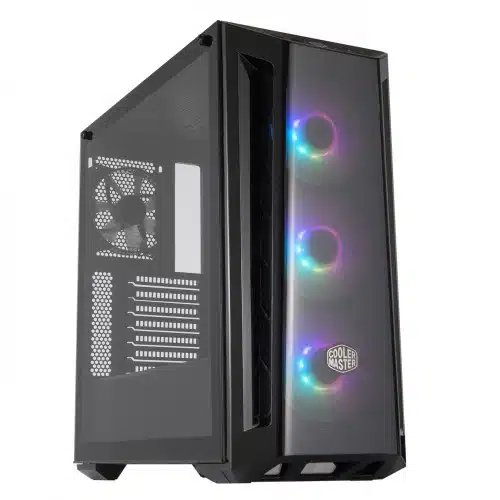

Cooler Master Masterbox MB520 ARGB Mid Tower ATX Casing

Description

Darkmirror Front Panel

Cooler Master Masterbox MB520 ARGB Mid Tower ATX Casing has shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.

Mesh Intakes

The large, mesh intakes on each side of the front panel provides considerable airflow to system.

ARGB Lightening System

Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

Tempered Glass Side Panel

Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Versatile Cooling Options

Cooler Master Masterbox MB520 ARGB Mid Tower ATX Casing supports up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.

Sickle flow PWM Fans Included

Cooler Master Masterbox MB520 ARGB Mid Tower ATX Casing has newly optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.

Specifications

• Type: Mid Tower
• Front Panel:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
• Tempered Glass Panel: Yes
• Motherboard Support: Mini ITX, Micro ATX, ATX
• E-ATX: (support for up to 12″ x 10.7″)
• Color(s): Black
• Weight: 6.59 kg
• Dimensions: 496 x 217 x 469 mm
• Front Ports:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
• Expansion Slots: 7
• Radiator Support:
  RADIATOR SUPPORT – TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)
  RADIATOR SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
  RADIATOR SUPPORT – REAR: 120mm
• Fan Support:
  FAN SUPPORT – TOP: 3x 120mm, 2x 140mm
  FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
  FAN SUPPORT – REAR: 1x 120mm
• Pre- Installed Fans:
  PRE-INSTALLED FANS – FRONT: 3x 120mm ARGB Fans
  PRE-INSTALLED FANS – REAR: 1x 120mm (Black)
• Drive Bays: 2.5″ / 3.5″ DRIVE BAYS (COMBO): 2 (Max.2), 2.5″ DRIVE BAYS: 4 (Max.6)
• I/O Port:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
  1x ARGB Controller
  1x ARGB 2-to-3 splitter
• PSU:180mm
• Side Panel: Tempered Glass
• Maximum CPU Cooler Height: 165mm
• Maximum Graphics Card Length: 410mm
