Description
MESH FRONT PANEL
The fine mesh front panel filters dust while offering efficient airflow for demanding systems.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.
EDGE-TO-EDGE TRANSPARENT SIDE PANEL
Showcase your build through the transparent side panel.

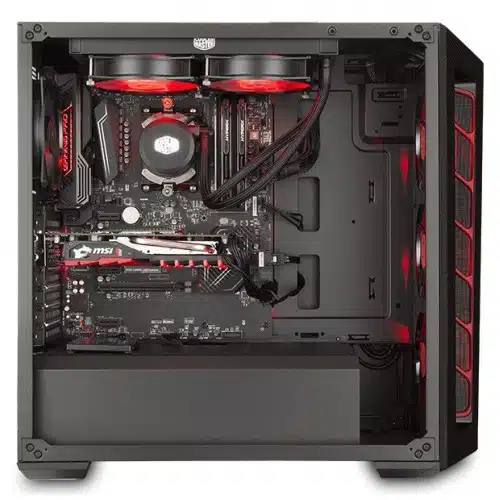

EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your gaming needs.
MAIN COMPONENTS CLEARANCE
The MB511 case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm.
Specification
| Case Type | ||
| Type | Mid Tower | |
| Front Panel | 2x USB 3.0, Audio In & Out (supports HD audio) | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | ATX, Micro ATX, Mini ITX | |
| External Features | ||
| Color(s) | Black | |
| Dimensions | 496 x 217 x 468 mm | |
| Expansion Slots | 7 | |
| Radiator Support | LIQUID COOLING SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm LIQUID COOLING SUPPORT – TOP: 120mm, 240mm LIQUID COOLING SUPPORT – REAR: 120mm |
|
| Fan Support | FAN SUPPORT – TOP: 2x 120mm, 2x 140mm FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm FAN SUPPORT – REAR: 1x 120mm |
|
| Pre- Installed Fans | 1x 120mm | |
| Drive Bays | 2.5″ / 3.5″ DRIVE BAYS (COMBO): 2 2.5″ DRIVE BAYS: 5 (Max.6) |
|
| I/O Port | 2x USB 3.0, Audio In & Out (supports HD audio) | |
| Additional Feature | ||
| PSU | 180mm/7.08″ | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 165mm/ 6.49″ | |
| Maximum Graphics Card Length | 410mm/ 16.1″ | |
