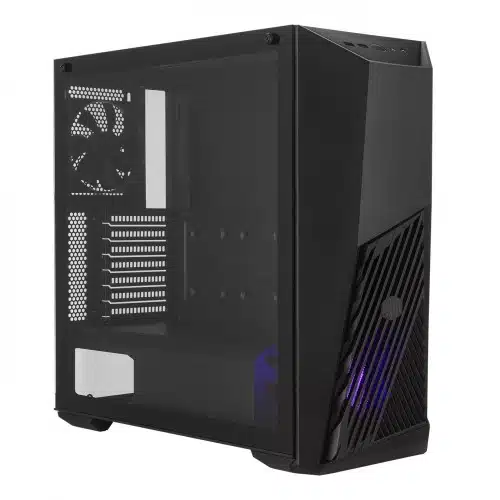

THE MASTERBOX K501L & K501L RGB
Gaming is in the core of the new MasterBox K501L. Donning an illuminated fan against the angled front panel ventilation speaks to its competitive character. Support of gaming hardware like long graphics cards, plenty of storage, and liquid cooling take priority in the K501L while still leaving room for future upgrades.
The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.
ILLUMINATED FAN & POWER BUTTON
Paired with lighting on the power button, an illuminated fan glows through the angled ventilation; a testament to its gamer core.
EDGE-TO-EDGE TRANSPARENT SIDE PANEL
Showcase your build through the transparent side panel. The standard K501L comes with an Acrylic panel while the K501L RGB sports a Tempered Glass one.
DUAL 360MM RADIATOR SUPPORT
For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
VERSATILE COMPONENT SUPPORT
Clearances of 410mm for the graphics card, 165mm for CPU coolers, and 180mm for PSUs offer room for powerful builds and future upgrades.
|Front Panel||1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack|
|Tempered Glass Panel||Yes|
|Motherboard Support||Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*
(*support for up to 12″ x 10.7″, will limit cable management features)
|Dimensions||428.7mm x 205mm x 458.5mm|
|Fan Support||FAN SUPPORT – TOP: 3x 120mm, 2x 140mm
FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
FAN SUPPORT – REAR: 1x 120mm
|Pre- Installed Fans||RE-INSTALLED FANS – TOP: N/A
PRE-INSTALLED FANS – FRONT: 1x 120mm Red LED (MCB-K501L-KANN-S00), 1x 120mm RGB LED (MCB-K501L-KGNN-SR1)
PRE-INSTALLED FANS – REAR: 1x 120mm
|Drive Bays||2.5″ / 3.5″ DRIVE BAYS (COMBO): 2
2.5″ DRIVE BAYS: 4 (2+2 combo)
|I/O Port||1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack|
|PSU||180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed)|
|Maximum CPU Cooler Height||165mm/ 6.49″|
|Maximum Graphics Card Length||410mm/ 16.1″|
