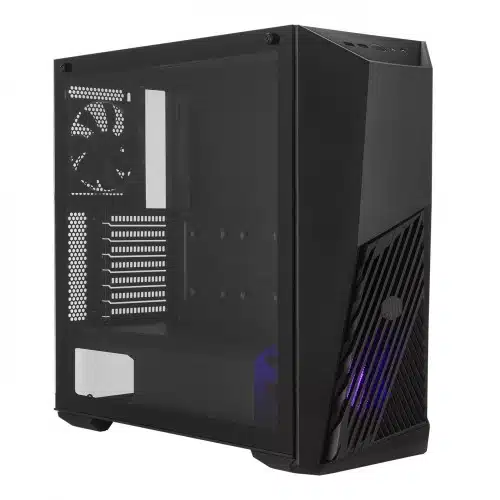

Cooler Master Masterbox K501L RGB ATX Mid-Tower Gaming Casing (Black)

Description

Angled Ventilation

The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the Cooler Master Masterbox K501L RGB ATX Mid-Tower Gaming Casing (Black) competitive character.

Illuminated Fan & Power Button

By pairing with the lighting on the power button, an illuminated fan glows through the angled ventilation, a testament to its gamer core.

Edge To Edge Side Panel

Showcase your build through the transparent side panel. The standard Cooler Master Masterbox K501L RGB ATX Mid-Tower Gaming Casing (Black) comes with an Acrylic panel while the K501L RGB sports a Tempered Glass one.

Dual 360mm Radiator Support

For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.

Versatile Cooling Option

Cooler Master Masterbox K501L RGB ATX Mid-Tower Gaming Casing (Black) supports up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

Versatile Component Support

The clearances of Cooler Master Masterbox K501L RGB ATX Mid-Tower Gaming Casing (Black) is 410mm for the graphics card, 165mm for CPU coolers, and 180mm for PSUs offer room for powerful builds and future upgrades.

Specifications

• Type: Mid Tower
• Front Panel: 1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
• Tempered Glass Panel: Yes
• Motherboard Support: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*
  (*support for up to 12″ x 10.7″, will limit cable management features)
• Color(s): Black
• Dimensions: 428.7mm x 205mm x 458.5mm
• Expansion Slots: 7
• Fan Support:
  FAN SUPPORT – TOP: 3x 120mm, 2x 140mm
  FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
  FAN SUPPORT – REAR: 1x 120mm
• Pre- Installed Fans:
  RE-INSTALLED FANS – TOP: N/A
  PRE-INSTALLED FANS – FRONT: 1x 120mm Red LED (MCB-K501L-KANN-S00), 1x 120mm RGB LED (MCB-K501L-KGNN-SR1)
  PRE-INSTALLED FANS – REAR: 1x 120mm
• Drive Bays:
  2.5″ / 3.5″ DRIVE BAYS (COMBO): 2
  2.5″ DRIVE BAYS: 4 (2+2 combo)
• I/O Port: 1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
• PSU: 180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed)
• Maximum CPU Cooler Height: 165mm/ 6.49″
• Maximum Graphics Card Length: 410mm/ 16.1″
