Description
The Boya BY-PM700 is a professional-grade USB condenser microphone featuring a versatile triple-capsule design, ideal for streaming, podcasting, vocals, and instrument recording. With four selectable polar patterns—stereo, cardioid, omnidirectional, and bi-directional—it adapts seamlessly to various recording environments. It offers a high-resolution 16-bit/48 kHz audio quality, delivering crisp and clear sound across a wide 20Hz–20kHz frequency range. The built-in 1/8″ headphone monitoring jack allows for real-time audio monitoring without latency, and a convenient control knob lets users adjust headphone and recording volume with ease.
The BY-PM700 is compatible with both Windows and Mac systems via its integrated USB connection, making setup quick and driver-free. It also includes a headphone amplifier with a 130mW output and 16-ohm impedance, supporting a full audio monitoring experience. The microphone’s solid build weighs 1042g and features adjustable height (from 200mm to 295mm), ensuring stability on any desktop with its sturdy stand. With a signal-to-noise ratio of 80dB and maximum SPL of 110dB, it captures audio with excellent clarity and minimal distortion. The package includes a 3m USB cable and a 2m Type-C cable for flexible connectivity. Backed by a 1-year warranty, the Boya BY-PM700 is a reliable and powerful solution for high-quality digital audio recording.
Specification
- Microphone Type: USB Microphone
- Polar Patterns: Stereo, Cardioid, Omnidirectional, Bi-directional
- Frequency Range: 20 Hz – 20,000 Hz
- Sensitivity: -36dB (0dB=1V/Pa, 1kHz 1Pa)
- Resolution: 16 Bit / 48 kHz
- Signal-to-Noise Ratio: 80 dB
- Maximum Sound Pressure Level (SPL): 110 dB
- Gain Control: 0-42dB

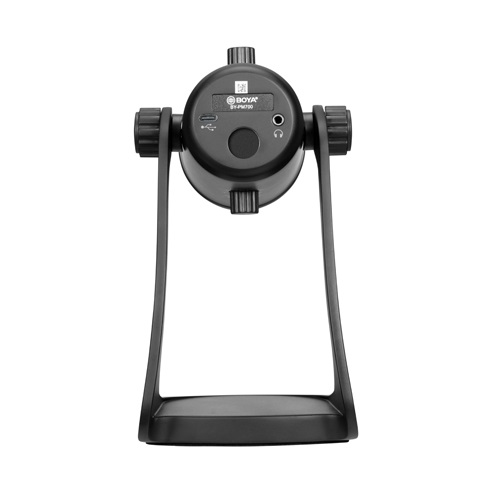

- Connector: 1/8″ Headphone Monitoring Jack
- Power Module: 5V / 150mA
Headphone Amplifier:
-
- Impedance: 16 ohms
- Power Output (RMS): 130mW
- Frequency Response: 15 Hz – 20,000 Hz
- Dimensions:
- Min: 112 x 108 x 200 mm (4.4 x 3.8 x 7.9″)
- Max: 112 x 108 x 295 mm (4.4 x 3.8 x 11.6″)
- Weight: 1042 g (36.8 oz)
- Power Consumption: 5V / 60mA
- System Requirements: Windows and Mac computers
Included Accessories:
- Integrated USB cable (3m)
- Type-C cable (2m)
- Durable desktop stand
Versatile Polar Patterns
The Boya BY-PM700 offers four selectable polar patterns: stereo, cardioid, omnidirectional, and bi-directional. These options make it highly adaptable to various recording situations. The stereo mode captures sound from all directions, providing a wide and immersive sound experience. The cardioid pattern focuses on sound from the front while rejecting noise from the sides and rear, making it ideal for voice recording in a controlled environment. Omnidirectional mode picks up sound from all directions evenly, which is great for recording group discussions or capturing ambient sound. Bi-directional mode picks up sound from both the front and rear while minimizing noise from the sides, perfect for interviews or dual speaker setups. This flexibility ensures that the BY-PM700 can be used in a variety of scenarios, from podcasts to music recording.
High-Resolution Audio Quality
Equipped with a 16-bit/48 kHz resolution, the Boya BY-PM700 delivers professional-grade audio clarity. This high resolution ensures that your recordings are crisp, clear, and detailed, with minimal distortion. Whether you’re recording a podcast, streaming, or making music, the microphone captures every nuance of sound with precision. The 48 kHz sample rate is ideal for high-definition digital audio, allowing for a richer and more natural sound. This makes the BY-PM700 a top choice for creators who require high-quality, accurate sound reproduction in their recordings.
Convenient Headphone Monitoring

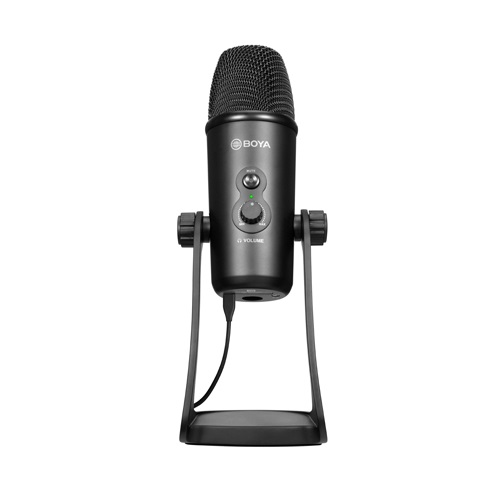

A standout feature of the BY-PM700 is the built-in 1/8″ headphone monitoring jack, which allows you to monitor your audio in real-time. This feature eliminates the delay or latency often experienced in other microphones, ensuring that you hear your voice or instrument as you record. The headphone monitoring jack enables seamless playback of your sound while adjusting to ensure perfect recording levels. Additionally, the microphone includes a shared control knob that allows for easy volume adjustments of both the headphone monitoring and recording levels. This intuitive design helps users find the perfect balance for their recordings without needing external software.
Durable and Adjustable Design
The Boya BY-PM700 is built with durability and adjustability in mind. It features a solid build, weighing 1042g, providing a stable and sturdy base during use. The adjustable height allows you to customize the microphone’s position, ranging from a minimum height of 200mm to a maximum of 295mm. This flexibility ensures that you can position the microphone at the optimal height and angle for your recording needs. Whether you’re sitting at a desk or standing, the adjustable stand ensures the microphone remains secure and positioned correctly. Its sleek and compact design fits seamlessly into any recording setup, making it an excellent choice for both home studios and portable recording environments.
Multiple Connectivity Options
The Boya BY-PM700 connects easily to both Windows and Mac computers via a USB interface, making it highly compatible with most modern digital devices. This plug-and-play feature eliminates the need for additional drivers or complicated installation processes, allowing for quick and hassle-free setup. The microphone also includes a 3-meter USB cable and a 2-meter Type-C cable, providing plenty of flexibility for different workstation setups. Whether you need to connect to a desktop, laptop, or other USB-enabled devices, the BY-PM700 ensures that you can easily integrate it into your existing equipment without any issues.
Powerful Headphone Amplifier
The Boya BY-PM700 comes with a built-in headphone amplifier that enhances your monitoring experience. With a power output of 130mW and a low impedance of 16 ohms, it ensures clear, high-volume sound directly through your headphones. The amplifier supports a frequency range of 15 Hz to 20,000 Hz, providing a full and dynamic listening experience for users. Whether you’re mixing, editing, or simply monitoring your recordings in real time, the headphone amplifier ensures that you get accurate sound reproduction. This feature is especially beneficial for professional audio creators who require high-fidelity sound while working on their projects.
