Description
The Boya BY-BM6040 is a compact, professional-grade cardioid shotgun microphone designed for high-quality audio capture in broadcasting, TV shoots, documentaries, interviews, and other on-location productions. With a directional cardioid polar pattern, it efficiently isolates the subject’s voice while rejecting unwanted background noise from the sides and rear. This microphone delivers clear, natural sound across a wide frequency response range of 90Hz to 20kHz, ensuring full lows, crisp highs, and balanced mids.
Constructed with rugged alloy-aluminum material, the BY-BM6040 is both moisture-resistant and interference-proof, making it reliable in various environments. It operates on 12-48V phantom power and connects via a standard 3-pin XLR output, making it compatible with professional audio recorders and video cameras. The microphone also includes a foam windscreen, fur windshield, and a 60cm XLR cable for added convenience and wind noise reduction.
Lightweight at just 100g, it’s easy to mount and carry for long recording sessions. The built-in shock mount minimizes handling noise, ensuring clean and stable recordings. Whether used indoors or outdoors, the Boya BY-BM6040 provides an affordable yet powerful solution for content creators, filmmakers, and journalists who demand reliable and high-quality directional audio capture.
Specification
- Model: Boya BY-BM6040
- Microphone Type: Cardioid Shotgun Microphone
- Polar Pattern: Cardioid
- Frequency Response: 90Hz – 20,000Hz
- Sensitivity: 30±3dB (0dB = 1V/Pa at 1kHz)
- Signal to Noise Ratio: 80dB
- Maximum SPL: 127dB SPL (1kHz at 1% T.H.D)
- Output Impedance: 100Ω
- Power Requirement: 12V – 48V Phantom Power
- Connector: 3-Pin XLR Male
- Cable: 60cm XLR Cable Included
- Cable Length: 1.96 ft
- Construction Material: Alloy-Aluminum
- Dimensions: Φ22 x 180mm
- Weight: 100g (0.1kg / 3.5oz)
- Color: Black
- Mount Type: Built-in Shock Mount

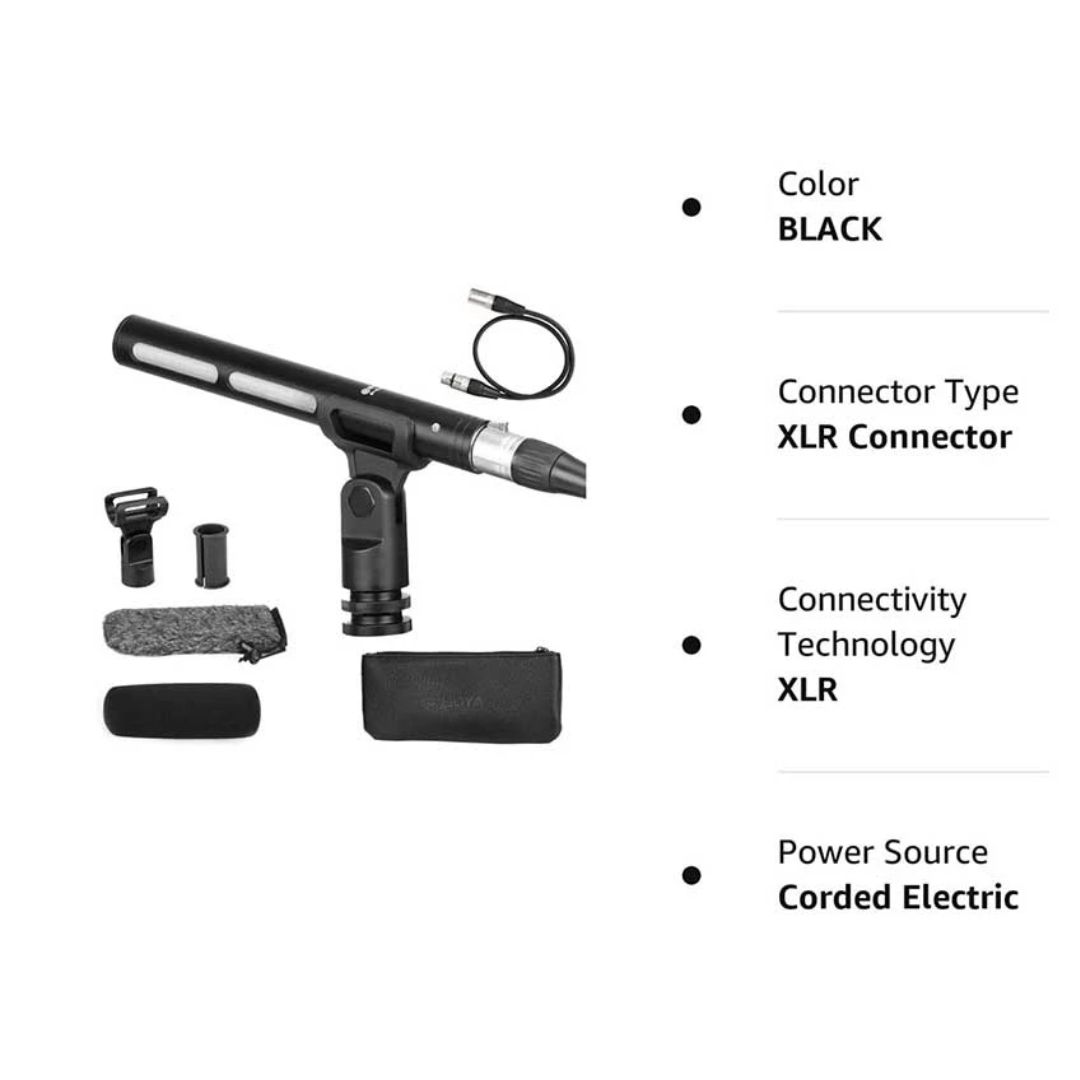

- Included Accessories: Foam Windscreen, Fur Windshield, XLR Cable
- Use For: Broadcast, TV shoots, documentaries, interviews, on-location recording
- Connection Type: Wired
- Plug Type: 3-Pin XLR
- Compatibility: Audio recorders, video cameras
- Waterproof/Dustproof/Shockproof: Not specified
- Lighting Effect: No
- Battery Required: No

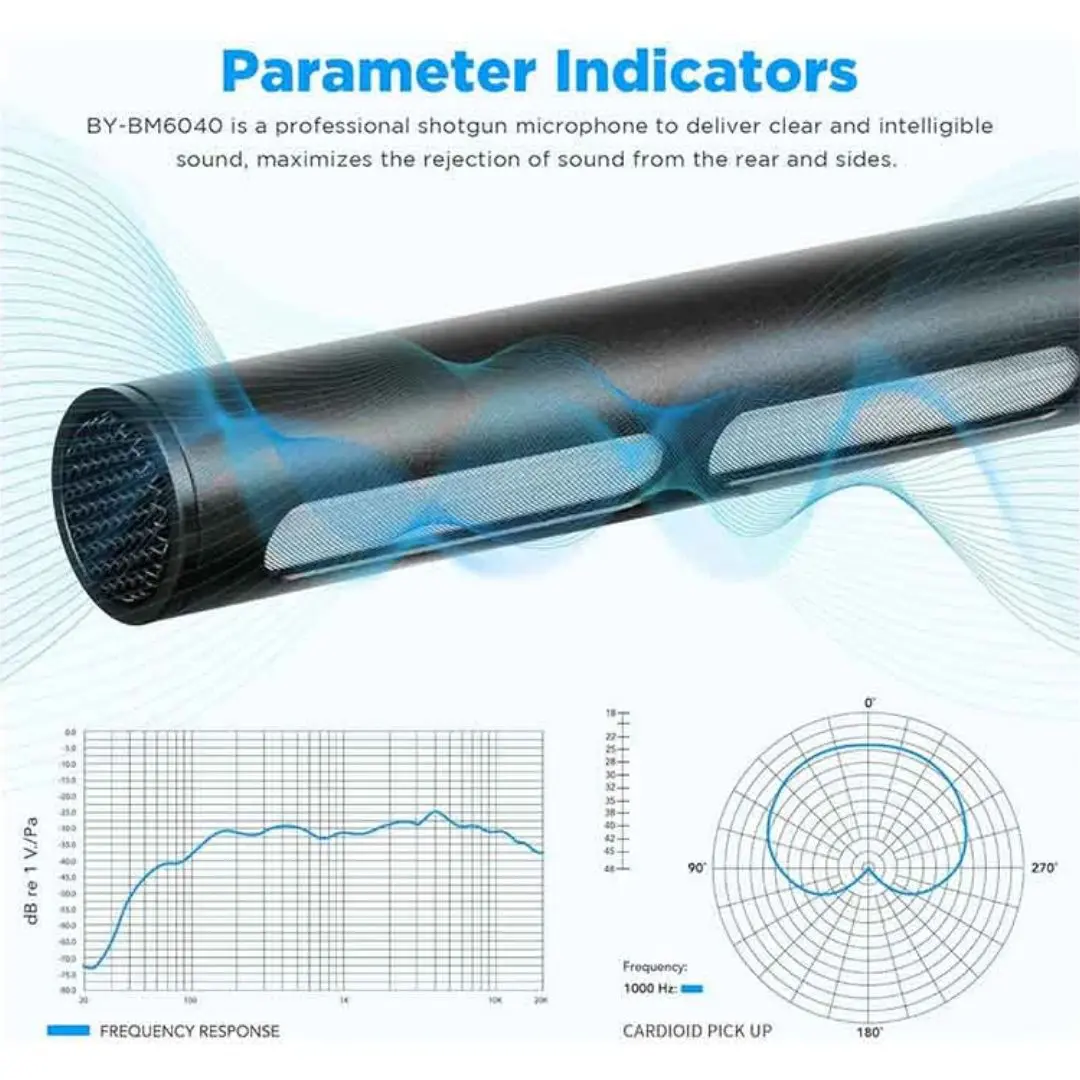

Cardioid Polar Pattern
The Boya BY-BM6040 features a cardioid polar pattern, which is highly effective at capturing sound directly in front of the microphone while minimizing unwanted noise from the sides and rear. This directional pickup pattern is ideal for isolating vocals or specific sound sources in busy or noisy environments, making it perfect for interviews, on-location shoots, and live events. By focusing on the target audio and rejecting ambient sounds, it ensures recordings are clean, clear, and free from distracting background noise.
Professional Sound Quality
Engineered for superior audio performance, the BY-BM6040 delivers a wide frequency response of 90Hz to 20kHz. This ensures rich, natural-sounding audio with deep lows, detailed mids, and crisp highs. Whether capturing dialogue, environmental sounds, or subtle vocal tones, the microphone reproduces them with professional clarity. Its sensitivity rating of 30±3dB allows it to pick up soft sounds accurately without introducing distortion, even in challenging acoustic settings.
Rugged and Lightweight Build
Built from high-quality alloy-aluminum, the microphone combines durability with portability. This rugged construction not only makes it resistant to physical damage but also offers moisture-proof and anti-interference properties, which are crucial for outdoor and mobile use. Despite its solid build, the BY-BM6040 weighs only 100g, making it extremely lightweight and easy to handle during long shoots. This makes it an excellent tool for handheld use, camera mounting, or boom pole applications.
Phantom Power and Connectivity
The Boya BY-BM6040 is powered via 12-48V phantom power, allowing it to work seamlessly with professional-grade video cameras, field recorders, and audio interfaces. It uses a standard 3-pin XLR connector for secure, high-quality signal transmission without the risk of signal degradation. This makes it compatible with most professional audio equipment, ensuring flexibility and reliability in diverse recording setups.

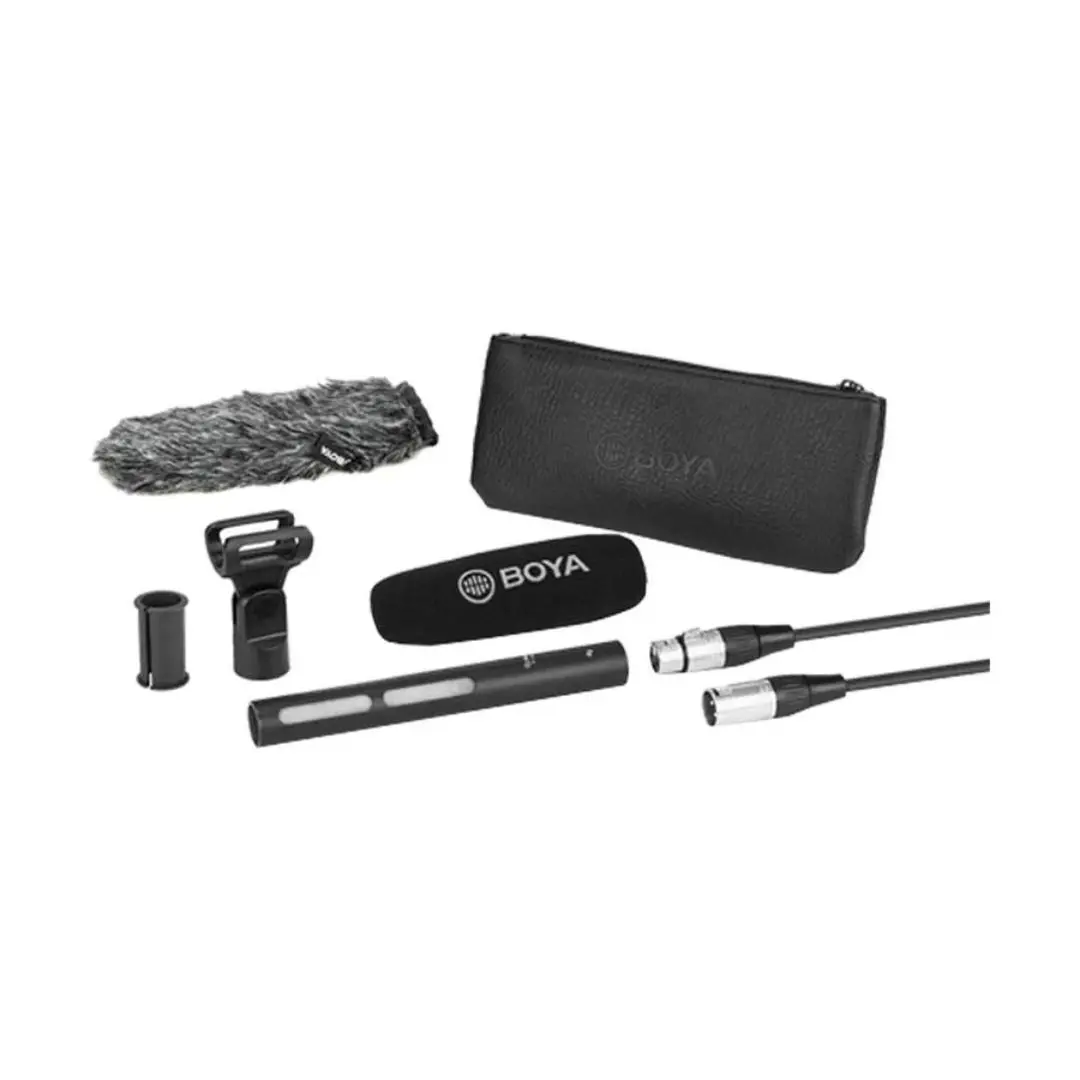

Versatile Mounting and Accessories
To enhance its versatility, the microphone includes a foam windscreen and a fur windshield, both of which help reduce wind and handling noise during outdoor and handheld recordings. It also comes with a 60cm XLR cable, allowing for quick and easy connection to recording devices. The built-in shock mount helps eliminate vibration and mechanical noise from camera movement or hand handling, ensuring that the recorded sound remains pure and unaffected by physical interference.
Ideal for Content Creation and Field Recording
Whether you’re a filmmaker, journalist, vlogger, or podcaster, the Boya BY-BM6040 is tailored for high-quality audio capture in a wide range of scenarios. It’s particularly suited for shooting documentaries, news segments, and interviews where clarity and noise rejection are essential. The combination of directional audio capture, compact size, and durable build makes it a reliable companion for indoor and outdoor content creation.
Effortless Operation and Reliable Performance
Designed for simplicity and reliability, the BY-BM6040 has no onboard buttons or controls, reducing the chance of accidental setting changes during use. Its plug-and-play design means you simply connect it to a phantom-powered device and start recording, with no need for additional configuration. This makes it accessible even for beginner users while still offering the performance demanded by professionals.
