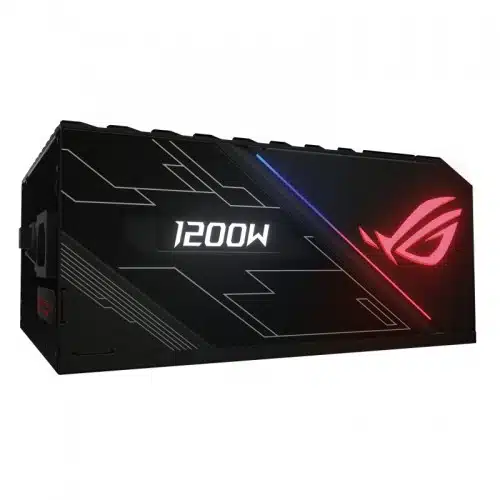

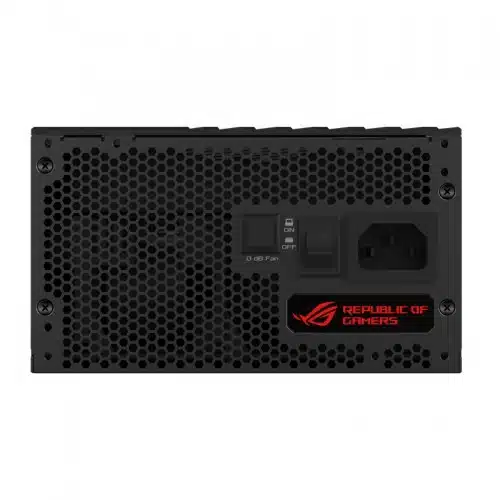

ASUS ROG THOR 1200P 1200W 80 Plus Platinum Power Supply

Description

Aura Sync

ASUS ROG THOR 1200P 1200W 80 Plus Platinum Power Supply allows advanced customization with addressable RGB LEDs and Aura Sync compatibility.

OLED Power Display

The ROG Thor 1200P Platinum Power Supply Unit features an integrated OLED panel, offering a real-time display of power draw. Now you can see at a glance how much juice your rig is using.

ROG Thermal Solution

IP5X dust resistance keeps it spinning freely and 0dB technology utilizes thermal sensors to allow the fan to switch off completely at lower wattages enabling totally silent operation.

80 PLUS Platinum

ASUS ROG THOR 1200P 1200W 80 Plus Platinum Power Supply is built with 100% Japanese capacitors and other premium components.

Heatsink

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the ROG Thor 1200W Platinum. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs.

Specifications

• Efficiency (Approx.): 80Plus Platinum (At 20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90%/92%/89%.)
• Certification: LAMBDA A+ certification
  80 PLUS Platinum certification
• Lighting Effect: Aura Sync
• Modular Type: Fully modular
• Total Power: 1200W
• Peak Power: 25A 25A 100A 0.3A 3A
• AC Input: 100-240Vac
• DC Output: +3.3V +5V +12V -12V +5Vsb
• Main Power: 24/20-pin x 1
• CPU: 8/4-pin x 2
• PCI-E: 8/6-pin x 8
• SATA: 12
• Molex: 4-pin x 5
• Floppy: 1

Warranty: 10 years
