Description
The ASUS Prime Radeon™ RX 9070 OC Edition 16GB GDDR6 Graphics Card delivers exceptional performance in a compact, well-engineered design. Built with AMD’s latest Radeon™ RX 9070 architecture, this graphics card features 16GB of GDDR6 memory and 3584 stream processors, making it ideal for gaming, content creation, and demanding workloads. The 2.5-slot design ensures compatibility with small-form-factor builds while maintaining superior cooling capabilities.
Equipped with three Axial-Tech fans featuring longer blades and a barrier ring, the card provides optimal airflow and lower temperatures. The innovative phase-change GPU thermal pad ensures maximum heat dissipation, while MaxContact technology expands the heat spreader surface area by 5% for improved thermal performance. The card operates silently during light tasks thanks to 0dB Technology, with fans stopping completely when GPU temperatures fall below 55°C.
With dual BIOS support, users can toggle between Performance and Quiet modes to suit their preferences. The card supports PCIe 5.0, features native HDMI 2.1b and three DisplayPort 2.1a outputs, and can drive up to four displays at 7680 x 4320 resolution. ASUS Auto-Extreme Technology ensures reliable manufacturing quality, while the protective backplate and stainless steel bracket provide structural rigidity and component protection.
Specifications
| Feature | Details |
|---|---|
| Graphics Processor | AMD Radeon™ RX 9070 |
| Video Memory | 16GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Speed | 20 Gbps |
| Stream Processors | 3584 |
| Boost Clock (OC Mode) | Up to 2610 MHz |
| Game Clock (OC Mode) | Up to 2140 MHz |
| Boost Clock (Default) | Up to 2590 MHz |
| Game Clock (Default) | Up to 2120 MHz |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Display Outputs | 1 x HDMI 2.1b, 3 x DisplayPort 2.1a |
| Maximum Resolution | 7680 x 4320 |
| Maximum Display Support | 4 Displays |
| HDCP Support | Yes (2.3) |
| Cooling Design | 2.5-Slot, Triple Axial-Tech Fans |
| 0dB Technology | Yes |
| Dual BIOS | Performance / Quiet Mode |
| Power Connectors | 2 x 8-pin |
| Recommended PSU | 650W |
| Dimensions | 312 x 130 x 50 mm (12.3 x 5.1 x 2.0 inch) |
| Slot Size | 2.5 Slot |
Advanced Cooling Technology for Optimal Performance
The ASUS Prime Radeon™ RX 9070 features an advanced cooling solution designed to keep temperatures low and performance high. The triple Axial-Tech fan configuration utilizes longer blades with a smaller hub design, creating increased downward air pressure for superior heat dissipation. Each fan is equipped with dual-ball bearings that offer exceptional durability, lasting up to twice as long as traditional sleeve bearing designs. The phase-change GPU thermal pad represents a significant advancement in thermal management, melting to fill microscopic gaps between the GPU and thermal module for superior heat conductivity. Combined with MaxContact technology that expands the heat spreader surface area by 5%, the cooling system ensures your graphics card maintains optimal temperatures even during extended gaming sessions or intensive rendering tasks. The vented backplate further enhances airflow, allowing heat to escape efficiently from both sides of the card.
Silent Operation with 0dB Technology
Experience peace and quiet during light workloads with the innovative 0dB Technology featured on the Prime Radeon™ RX 9070. When GPU temperatures remain below 55°C, all three fans come to a complete stop, eliminating noise entirely during web browsing, video playback, or casual gaming. This intelligent thermal management system allows you to work or enjoy entertainment in near silence. Once temperatures climb above 60°C, the fans automatically resume operation following a carefully tuned speed curve that balances acoustic performance with cooling efficiency. This smart approach means you only hear the fans when you need the extra cooling power, such as during demanding gaming sessions or GPU-intensive applications. The dual BIOS feature provides additional flexibility, allowing you to switch between Performance mode for maximum cooling or Quiet mode for a less aggressive fan curve while maintaining the same power targets.
Compact Design with Maximum Compatibility

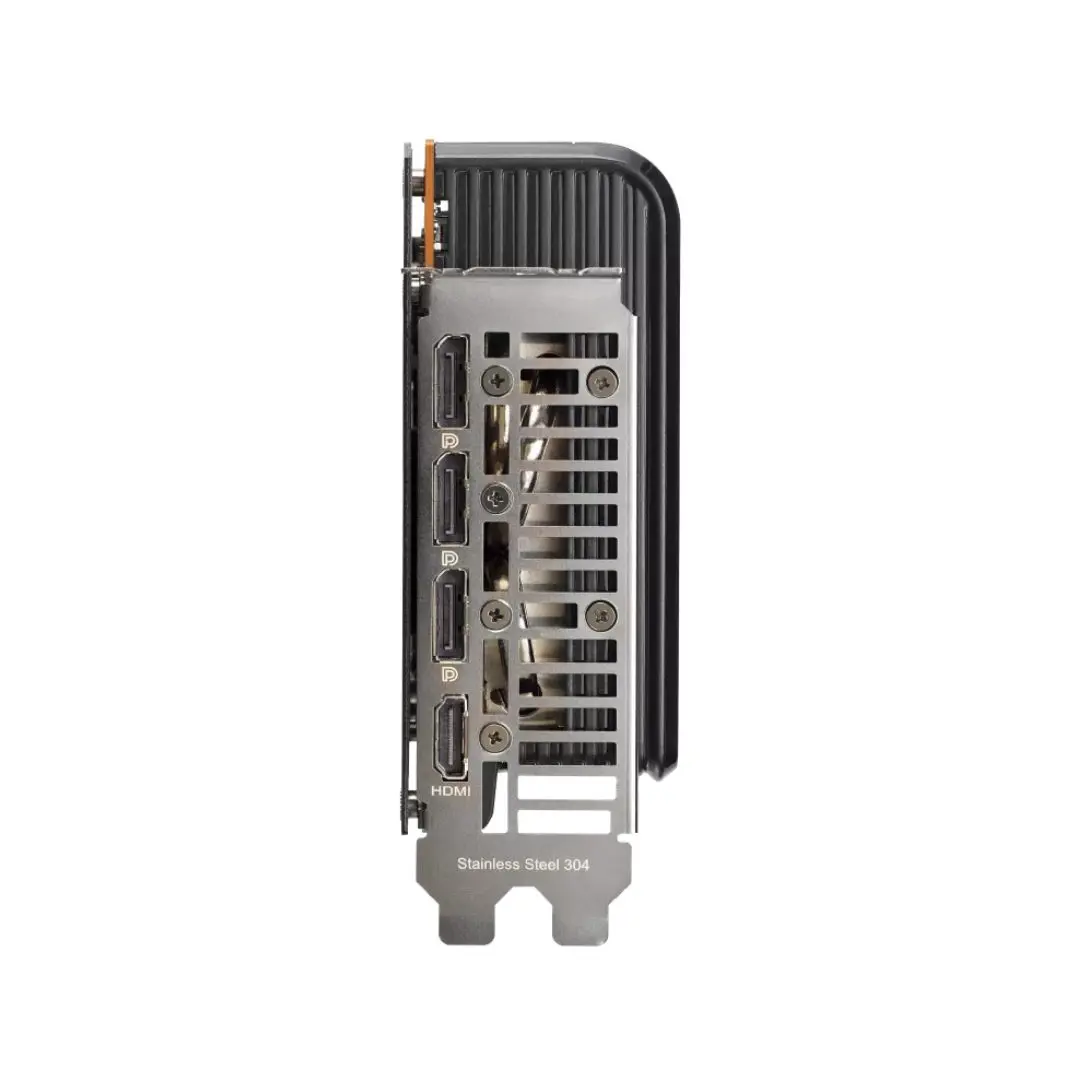

The 2.5-slot design of the Prime Radeon™ RX 9070 makes it an excellent choice for builders seeking high performance without sacrificing compatibility. Unlike bulkier three-slot designs, this card fits comfortably in small-form-factor cases and standard ATX builds alike, providing flexibility for various system configurations. Measuring 312 x 130 x 50 mm, the card maintains a compact footprint while housing a comprehensive cooling solution and robust power delivery system. The carefully engineered layout optimizes the arrangement of the shroud, heatsink, and heat pipes to leverage chassis side-panel ventilation effectively. Despite its smaller size, the card doesn’t compromise on features or performance, delivering the full capabilities of the AMD Radeon™ RX 9070 architecture. The stainless steel mounting bracket constructed from grade 304 steel provides excellent structural support and corrosion resistance, ensuring long-term reliability.
Premium Build Quality and Durability

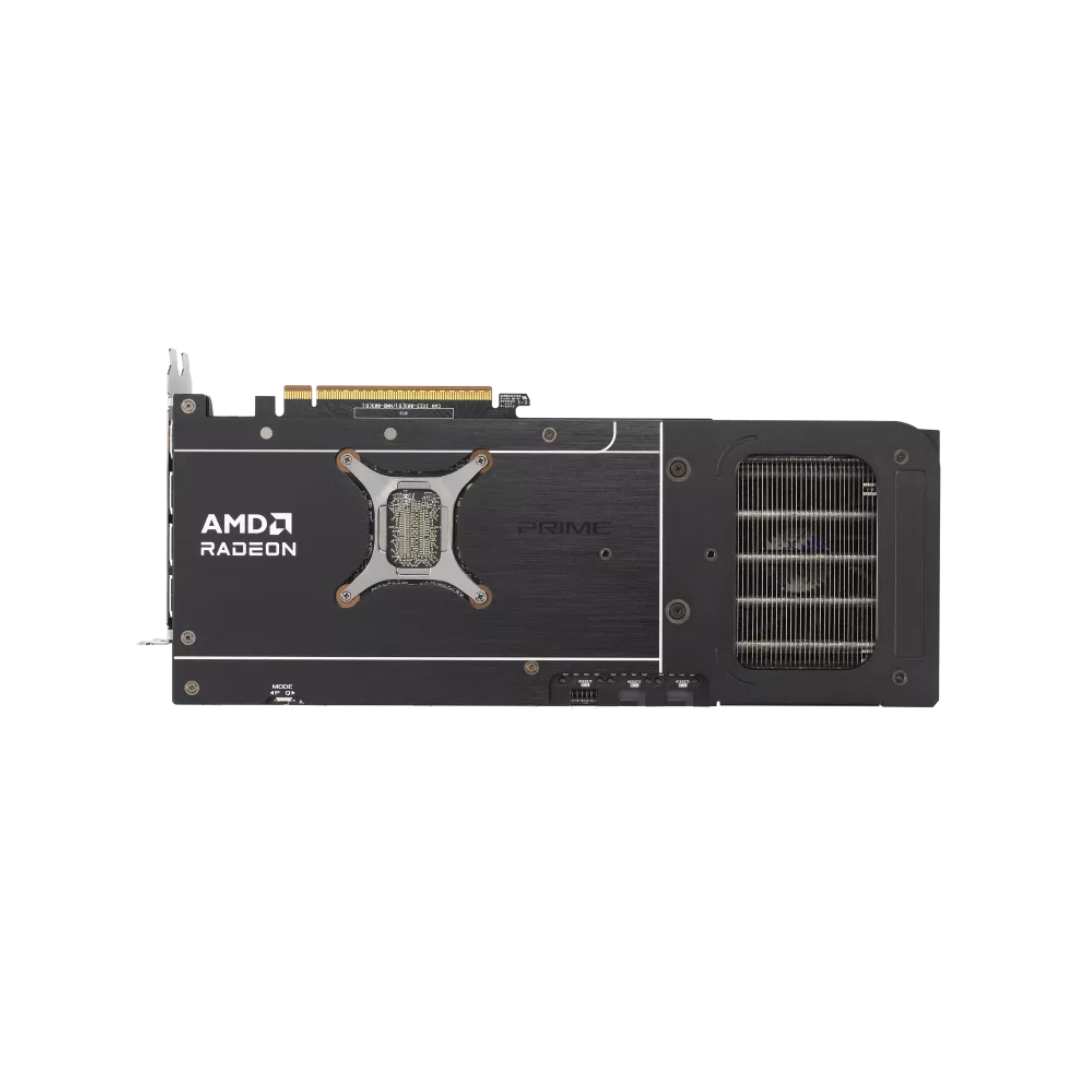

ASUS has implemented multiple technologies to ensure the Prime Radeon™ RX 9070 delivers lasting reliability and performance. Auto-Extreme Technology represents an advanced automated manufacturing process where all soldering is completed in a single pass, reducing thermal strain on components and eliminating the need for harsh cleaning chemicals. This results in a more environmentally friendly production process and enhanced product reliability. The ASUS GPU Guard applies protective adhesive to all four corners of the GPU to minimize the risk of cracks and damage, while an included GPU bracket ensures uniform mounting pressure and additional stability. A protective backplate reinforces the PCB, adding structural rigidity that prevents flex and shields delicate components and trace pathways from potential damage. The dual-ball fan bearings provide exceptional longevity, operating smoothly for years of continuous use. These premium construction methods combine to create a graphics card built to withstand the demands of enthusiast gaming and professional workloads.
Versatile Display Connectivity and Features
The Prime Radeon™ RX 9070 offers comprehensive display connectivity options to accommodate modern multi-monitor setups. With one native HDMI 2.1b port and three native DisplayPort 2.1a outputs, the card supports up to four simultaneous displays at resolutions up to 7680 x 4320, perfect for immersive gaming, productivity workstations, or content creation environments. HDCP 2.3 support ensures compatibility with premium protected content streaming. The card also includes one month of free Adobe Creative Cloud, making it an excellent choice for creative professionals working with demanding applications. ASUS GPU Tweak III software provides comprehensive control over card performance, allowing users to fine-tune clock speeds, voltages, and fan curves to achieve their desired balance of performance and acoustics. The intuitive interface makes it easy for both beginners and experienced overclockers to extract maximum performance from their hardware.
Power Efficiency and Performance Modes
Operating on the PCI Express 5.0 standard, the Prime Radeon™ RX 9070 delivers cutting-edge bandwidth capabilities for maximum performance. The card requires two 8-pin power connectors and a recommended 650W power supply, making it relatively efficient for its performance class. ASUS recommends pairing the card with their Prime Gold 850W or 750W power supplies for optimal stability and efficiency. The dual BIOS switch allows instant toggling between Performance and Quiet modes without software intervention. Performance mode maximizes cooling by allowing fans to spin up aggressively, keeping temperatures as low as possible during intensive workloads. Quiet mode maintains identical power targets and maximum performance capabilities but employs a gentler fan curve, reducing noise levels during moderate use. This flexibility lets you optimize the card’s behavior based on your specific needs, whether you’re chasing benchmark records or enjoying late-night gaming sessions when noise is a concern.
