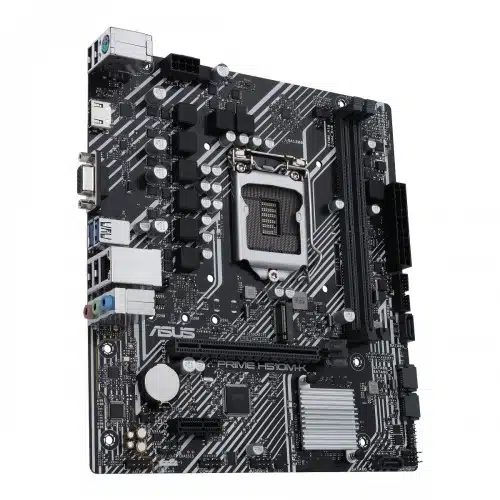

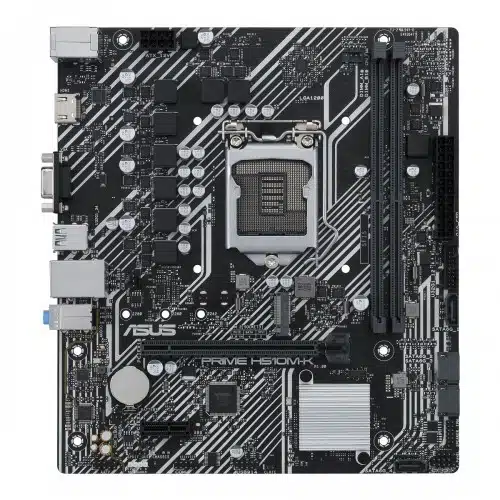

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard

Description

Compatibility

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard is expertly engineered to unleash the full potential and supports 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Features

This motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. ASUS PRIME H510M-D Motherboard featured with Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors, Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1, Comprehensive cooling: PCH heatsink and Fan Xpert, 5X Protection III: Multiple hardware safeguards for all-round protection. The ASUS Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads and also features with comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Specifications

• Supported CPU:
  Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  Chipset: Intel H510
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Form Factor: microATX: 22.6cm x 20.3cm
• PCI:
  Intel 11th & 10th Gen Processors
  1 x PCIe 4.0/3.0 x16 slot
  – Intel 11th Gen processors support PCIe 4.0 x16
  – Intel 10th Gen processors support PCIe 3.0 x16
  Intel H510 Chipset
  1 x PCIe 3.0 x1 slot
• M.2 Socket: Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Type: DDR4
• Slots: 2 x DIMM
• Supported Memory:
  DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
• Maximum Memory: Max. 64GB
• Graphics:
  1 x D-Sub
  1 x HDMI 1.4 / 2.0
• HDMI: 1 x HDMI 1.4
• D-Sub (s): 1 x D-Sub
• USB (s):
  Rear USB: Total 6 ports
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB: Total 4 ports
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
  LAN Port (s):
  1 x Intel I219-V 1Gb Ethernet
  ASUS LANGuard
• Supported Storage:
  Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel H510 Chipset
  M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
• Audio:
  ALC887/ 897
  Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC
  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – Supports up to 24-Bit/192 kHz playback”
  Audio Features:
  – Audio Shielding
  – Dedicated audio PCB layers
• Internal I/O Ports:
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports
• USB:
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
  Miscellaneous
  1 x RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x 10-1 pin System Panel header
• TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)

Warranty: 3 Years
