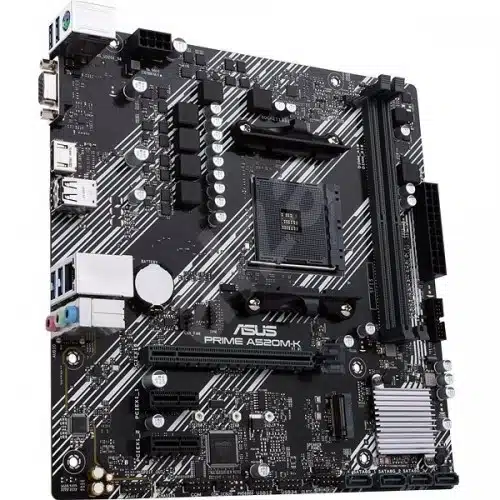

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Description

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Cooler by Design

PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.

Build on a Solid Foundation

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

M.2 (up to 32 Gbps)

M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

Specifications

• Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Chipset: AMD A520
• BIOS: 256 MB Flash ROM, UEFI AMI BIOS
• Form Factor:
  mATX Form Factor
  8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
• PCI:
  AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  1 x PCIe 3.0 x16 (x16 mode)
  AMD A520 Chipset
  2 x PCIe 3.0 x1
• Memory Type: Dual Channel DDR4 Memory Technology
• Slots: 2 x DIMM
• Supported Memory:
  4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
• Maximum Memory: 64GB, DDR4
• HDMI: 1 x HDMI 2.1 (4K@60Hz)
• D-Sub (s): 1 x D-Sub
• USB (s):
  Rear USB Port ( Total 6 )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)
• LAN Port (s):
  Realtek RTL8111H 1GB Ethernet
  ASUS LANGuard
• Supported Storage:
  Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support
• AMD Ryzen 4000 G-Series Processors :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• AMD B550 Chipset :
  1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• Audio:
  Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Audio Feature :
  – Audio Shielding
  – Dedicated audio PCB layers
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• Internal I/O Ports:
  1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
  1 x Speaker connector
• Back I/O Ports:
  1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• TPM (Trusted Platform Module ): 1 x SPI TPM header

Warranty: 3 Years
