Description
The ASUS Dual GeForce RTX 5060 8GB GDDR7 Graphics Card is a powerful next-generation GPU designed for modern gaming, content creation, streaming, and graphics-intensive applications. Powered by the NVIDIA GeForce RTX 5060 graphics engine, it features 3840 CUDA cores and delivers up to 613 TOPs of AI performance, providing excellent performance for AI-enhanced graphics and demanding workloads.
This graphics card comes equipped with 8GB GDDR7 video memory operating at an impressive 28 Gbps over a 128-bit memory interface. Its engine clock reaches 2497MHz in default boost mode and up to 2527MHz in OC mode, ensuring responsive and stable performance during intensive gaming sessions.
The ASUS Dual RTX 5060 uses the latest PCI Express 5.0 interface, providing high-speed connectivity with compatible platforms. For display connectivity, it offers three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four displays and a maximum digital resolution of 7680 × 4320.
With its compact 2.5-slot design, single 8-pin power connector, and recommended 550W PSU, the ASUS Dual GeForce RTX 5060 is an excellent option for building a powerful and efficient modern gaming PC.
Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | Dual GeForce RTX 5060 8GB GDDR7 |
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Video Memory Type | GDDR7 |
| Video Memory Size | 8GB |
| CUDA Cores | 3840 |
| AI Performance | 613 TOPs |
| Boost Clock | 2497MHz |
| OC Mode Clock | 2527MHz |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Bus Type | PCI Express 5.0 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3x Native DisplayPort 2.1b |
| HDMI | 1x Native HDMI 2.1b |
| HDCP Support | HDCP 2.3 |
| Maximum Display Support | 4 |
| OpenGL | OpenGL 4.6 |
| Power Connector | 1x 8-Pin |
| Recommended PSU | 550W |
| Slot Size | 2.5 Slot |
| Dimensions | 228 × 123 × 50mm |
| Dimensions in Inches | 8.98 × 4.84 × 1.97 inches |
Powerful NVIDIA GeForce RTX 5060 Performance
The ASUS Dual GeForce RTX 5060 is equipped with 3840 CUDA cores and delivers 613 TOPs of AI processing performance. This makes it capable of handling demanding modern games, graphics applications, streaming, and creative workloads with smooth and responsive performance.
Ultra-Fast 8GB GDDR7 Memory
Featuring 8GB of GDDR7 video memory, the ASUS Dual RTX 5060 provides a memory speed of up to 28 Gbps through a 128-bit memory interface. The high-speed memory helps the GPU efficiently handle detailed textures, high-resolution assets, and graphics-intensive workloads.
Up to 2527MHz OC Mode Clock
The ASUS Dual GeForce RTX 5060 operates at a 2497MHz default boost clock and can reach 2527MHz in OC mode. The higher clock speed allows the graphics card to provide additional performance when running demanding games and GPU-intensive applications.
PCI Express 5.0 Interface
The graphics card features a modern PCI Express 5.0 bus interface, making it suitable for current-generation desktop gaming platforms. It offers fast communication between the graphics card and compatible system components for reliable overall performance.

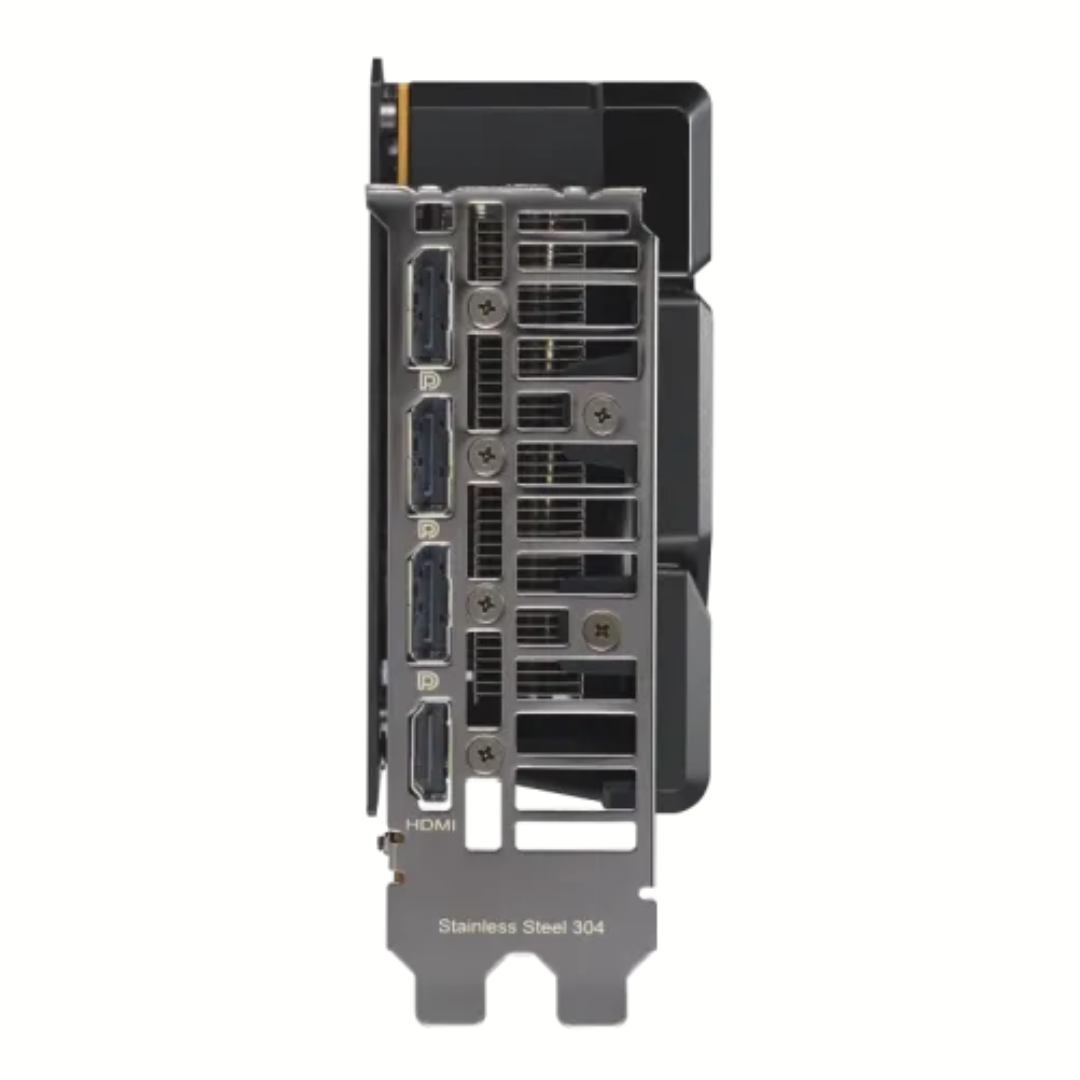

High-Resolution Multi-Display Support
The ASUS Dual RTX 5060 features three native DisplayPort 2.1b ports and one native HDMI 2.1b port. Users can connect up to four displays simultaneously, making the card suitable for gaming, streaming, content creation, productivity, and multi-monitor setups.
It supports a maximum digital resolution of 7680 × 4320, allowing it to work with ultra-high-resolution displays.
Compact 2.5-Slot Design
With dimensions of only 228 × 123 × 50mm, the ASUS Dual GeForce RTX 5060 uses a compact 2.5-slot design. Its relatively compact size provides better compatibility with a wide range of modern desktop PC cases while maintaining an efficient cooling solution.

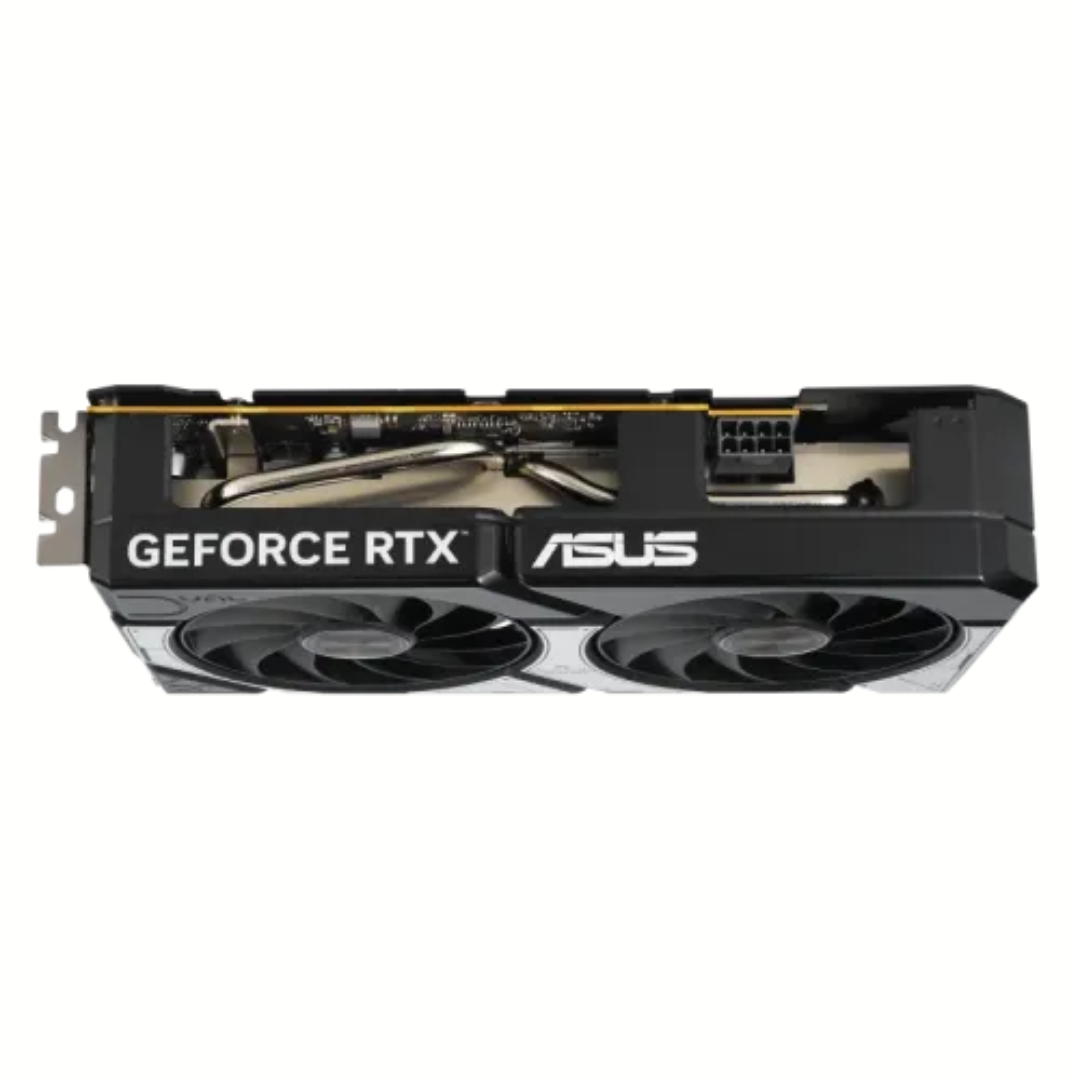

Efficient Power Requirement
The ASUS Dual RTX 5060 requires only a single 8-pin power connector, while a 550W power supply is recommended for the system. This makes the card easier to integrate into many mid-range and performance-oriented gaming PC configurations.
