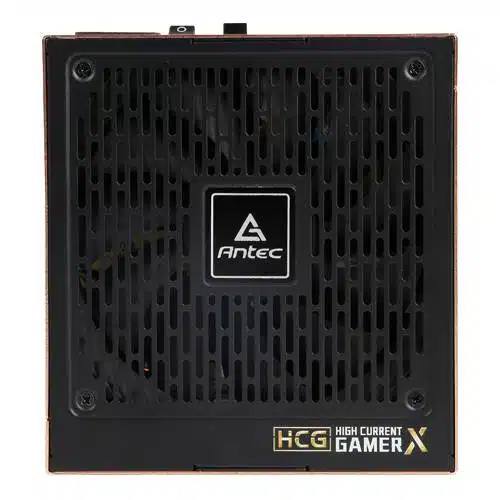

Antec HCG1000 Extreme 1000 Watt Power Supply

The whisper-quiet, 135 mm fluid-dynamic bearing(FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

100% Japanese Capacitors

Using 100% high-performance Japanese capacitors, the Antec HCG1000 Extreme 1000 Watt Power Supply ensures the tightest DC stability and regulation, for reliability that you and your system can count on.

PhaseWave™ Design

A server-class full-bridge LLC designwith a synchronous rectification based on a DC-DC topology.

Server-grade 50°C Temperature Rating

HCG Extreme delivers non-stop industrial classperformance for high-end computer system sat up to 50°C ambient.

Specifications:

Product Name: HCG1000 Extreme
Model Name: HCG1000 Extreme
Type: ATX 12V 2.4
Modular: Fully Modular
Dimension (W x L x H): 160(L) x 150(W) x 86(H)
Input Voltage: 100-240 VAC ±10%
Input Current: 13A-6.5A
Input Frequency Range: 50Hz-60Hz
PFC: Active PFC (>0.9 typical)
Power Good Signal: 100-500ms
Efficiency: 92% Typically
Protection: OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity: 1000W
Operation Temperature: 0~50°C
Regulatory: cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR
Fan: 135mm FDB Fan
Certifications: 80 Plus Gold

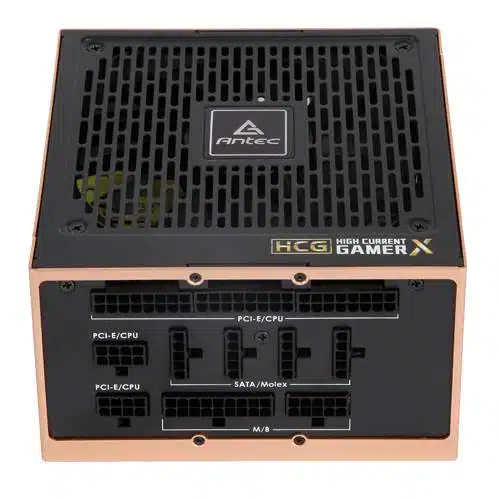

Connector: 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
12 x SATA
6 x Molex
1 x FDD
Net Weight : 1.66 Kgs
Gross Weight: 3.40 Kgs

Warranty 10 years
