Description
The AJAZZ AK680 V3 Magnetic Switch Gaming Keyboard is a high-performance compact gaming keyboard engineered for competitive gamers who demand exceptional speed, precision, and responsive key input. Built around advanced magnetic switch technology, the AK680 V3 features Meow Meow Magnetic Switches, providing highly accurate key detection while creating a smooth and responsive gaming experience. Its compact 68% layout saves valuable desk space and gives gamers more room for mouse movement, making it particularly suitable for FPS and competitive gaming setups.
Performance is one of the biggest strengths of the AJAZZ AK680 V3. The keyboard supports an impressive 8000Hz (8K) polling rate together with a 64K channel scan rate, allowing key inputs to be detected and transmitted extremely quickly. It is specified with 0.001 accuracy and an approximately 0.08ms delay, providing the fast response required for demanding and fast-paced gaming environments.
The keyboard also offers Full-Key Hot-Swappable support, giving enthusiasts greater flexibility to replace compatible switches without soldering. Its TOP structure, aluminum alloy positioning plate, and FR4 PCB provide a stable internal foundation for both gaming and typing.
For enhanced acoustics and typing feel, the AK680 V3 incorporates a multi-layer internal filling design. The keyboard also features Lower Light Position ARGB backlighting, creating an attractive gaming aesthetic for modern desktop setups.
Web and PC dual-platform driver support provides additional customization possibilities, while the detachable wired design makes cable management and transportation more convenient. Combining magnetic switch technology, 8K polling, 64K scanning, premium internal construction, and a compact form factor, the AJAZZ AK680 V3 is built for gamers who prioritize speed, accuracy, and customization.
Specifications
| Specifications | Details |
|---|---|
| Brand | AJAZZ |
| Model | AK680 V3 |
| Product Type | Magnetic Switch Gaming Keyboard |
| Layout | 68% |
| Switch Option | Meow Meow Magnetic Switch |
| Connection Type | Wired |
| Polling Rate | 8000Hz (8K) |
| Channel Scan Rate | 64K |
| Accuracy | 0.001 |
| Delay | Approx. 0.08ms |
| Hot-Swap Option | Full-Key Hot-Swappable |
| RGB Option | Lower Light Position ARGB |
| Structure | TOP Structure |
| Positioning Plate | Aluminum Alloy |
| PCB | FR4 |
| Driver Support | Web & PC Dual-Platform Driver |
| Color | Contour Line-Black / Contour Line-White |
| Dimensions | 351.2 × 128.9 × 42.01mm |
| Weight | Approx. 700g |
| Warranty | 1 Year |
Meow Meow Magnetic Switches
The AJAZZ AK680 V3 is equipped with Meow Meow Magnetic Switches, providing precise and responsive key detection for competitive gaming. Magnetic switch technology detects key movement with high accuracy and works together with the keyboard’s high-speed scanning system. This makes the AK680 V3 particularly suitable for fast-paced games where rapid movement commands and responsive keyboard input are important.
8000Hz Polling Rate
With an impressive 8000Hz (8K) polling rate, the AJAZZ AK680 V3 is designed to transmit keyboard inputs at an extremely high frequency. Compared with conventional lower-polling-rate keyboards, its high polling capability helps minimize the time between a key input and the corresponding system response, providing the responsive feel competitive gamers demand.
64K Channel Scan Rate & 0.08ms Delay
The keyboard features a powerful 64K channel scan rate for high-speed key detection. It is also specified with 0.001 accuracy and approximately 0.08ms delay. Combined with its magnetic switches and 8K polling rate, these performance characteristics create a highly responsive input system suitable for competitive and fast-paced gaming.
Full-Key Hot-Swappable Design
The AJAZZ AK680 V3 supports Full-Key Hot-Swappable functionality, allowing compatible switches to be replaced without traditional soldering. This gives keyboard enthusiasts more flexibility to customize their setup and experiment with compatible magnetic switches while also making switch replacement considerably more convenient.

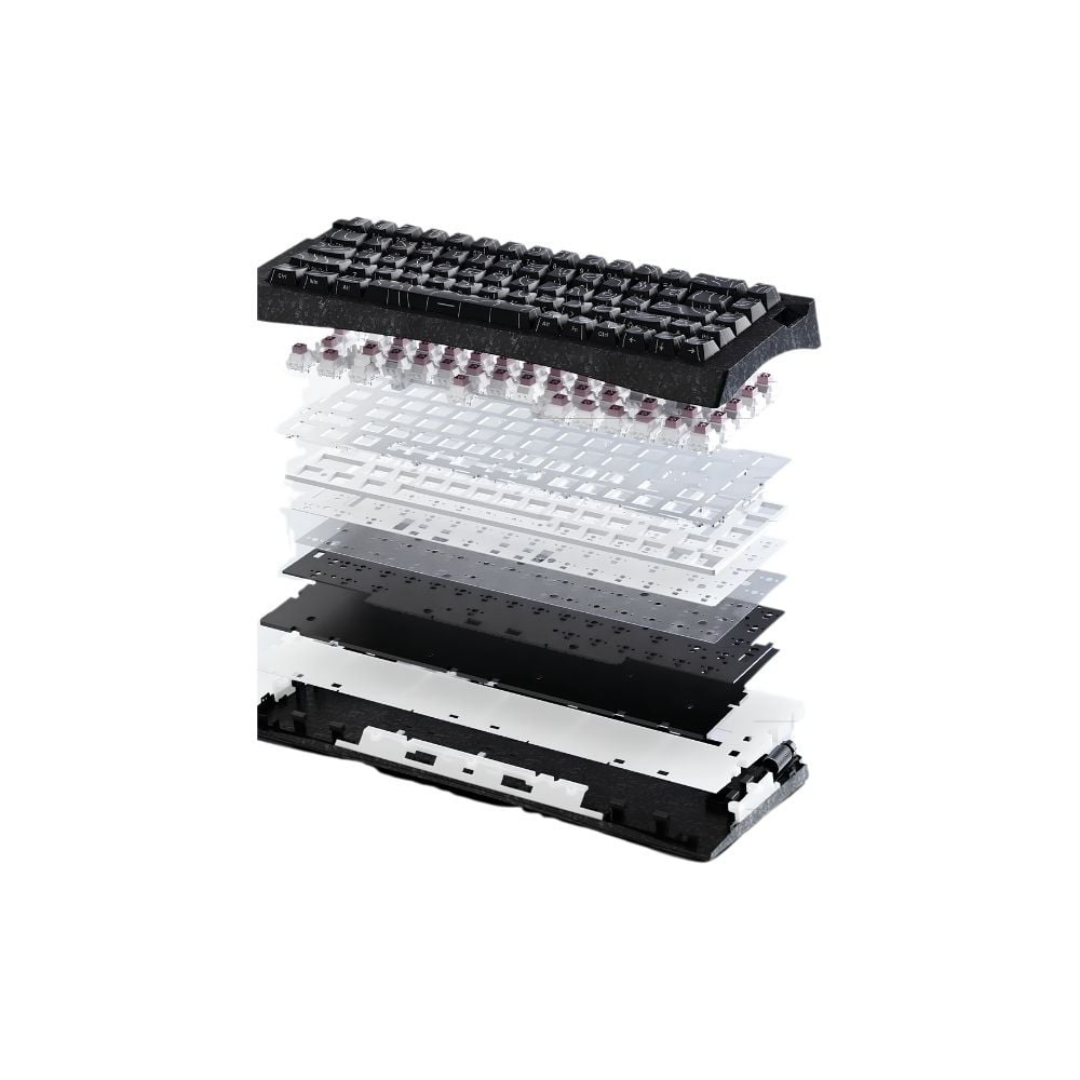

TOP Structure, Aluminum Plate & FR4 PCB
A well-built internal structure provides the foundation for the AK680 V3. It utilizes a TOP structure combined with an aluminum alloy positioning plate and FR4 PCB. This construction provides solid key support and structural stability while the multi-layer internal filling helps create a more controlled overall typing and gaming experience.
ARGB Lighting & Web/PC Driver Support
The keyboard features Lower Light Position ARGB backlighting, adding vibrant lighting effects to a modern gaming setup. It also supports a Web and PC dual-platform driver, allowing users to access compatible keyboard settings and customization options. Together, the ARGB illumination and software support provide both visual personalization and practical customization.
