Description

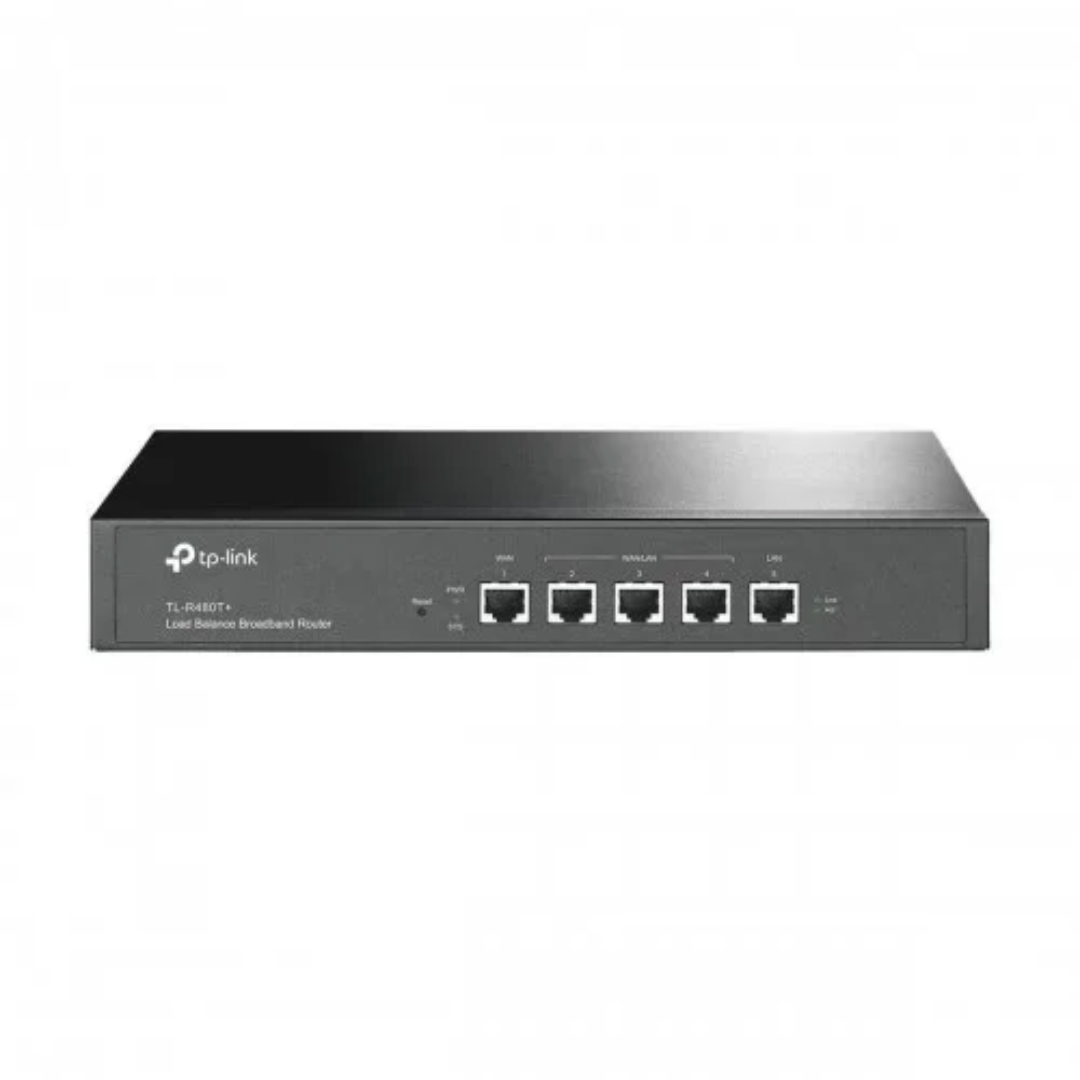

The TP-Link TL-R480T+ Load Balance Broadband Router is a professional wired networking solution designed for small businesses, offices, shops and organizations that require reliable internet connectivity. It features one fixed 10/100Mbps WAN port, one fixed 10/100Mbps LAN port and three configurable WAN/LAN ports, allowing users to connect up to four separate WAN connections.
Its intelligent load-balancing technology automatically distributes network traffic across multiple broadband lines according to their bandwidth and current load. This helps improve internet stability, efficiently utilize available bandwidth and reduce network interruptions. Advanced QoS and IP-based bandwidth control allow administrators to manage bandwidth allocation for specific users and important applications.
The TP-Link TL-R480T+ also offers a powerful firewall, web authentication and effective access-control features for enhanced network security. Its professional 4KV lightning-protection technology provides additional safety against electrical surges under properly grounded conditions. A convenient web-based management interface makes network configuration and monitoring simple. With its rack-mount-compatible design, low power consumption and reliable performance, the TP-Link TL-R480T+ is an excellent choice for building a stable and manageable business network.
Specification
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Model | TL-R480T+ |
| Router Type | Load Balance Broadband Router |
| Connectivity | Wired |
| Network Speed | 10/100Mbps |
| WAN Port | 1× Fixed 10/100Mbps WAN Port |
| LAN Port | 1× Fixed 10/100Mbps LAN Port |
| Configurable Ports | 3× 10/100Mbps WAN/LAN Ports |
| Maximum WAN Support | Up to 4 WAN Ports |
| Button | Reset Button |
| WAN Connection Type | Static IP, Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, BigPond Cable |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Supported Protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
| Network Media | 10BASE-T: Cat 3/4/5 UTP; 100BASE-TX: Cat 5/5e UTP |
| Maximum Cable Distance | 100 Meters |
| Management | Web-Based Management |
| Power Supply | External 12V/1A DC Adapter |
| Maximum Power Consumption | 7.94W |
| Dimensions | 294 × 180 × 44mm |
| Rack Compatibility | 13-inch/19-inch Standard Rack-Mount Width, 1U Height |
| Operating Temperature | 0°C–40°C |
| Storage Temperature | -40°C–70°C |
| Operating Humidity | 10%–90% Non-Condensing |
| Storage Humidity | 5%–90% Non-Condensing |
| Supported Operating Systems | Windows, macOS, NetWare, UNIX and Linux |
Flexible Multi-WAN Connectivity
This router features one fixed 10/100Mbps WAN port, one fixed 10/100Mbps LAN port and three configurable WAN/LAN ports. Depending on your network requirements, the configurable ports allow the router to support up to four WAN connections through a single device.
Intelligent Load Balancing
The integrated load-balancing system distributes network traffic across the connected internet lines according to their bandwidth and current load. This helps businesses utilize multiple broadband connections efficiently while maintaining stable and consistent internet connectivity.
Advanced Bandwidth Management
With IP-based bandwidth control and advanced QoS features, administrators can allocate or reserve bandwidth for specific users and applications. It helps prevent individual devices from consuming excessive bandwidth and keeps important business operations running smoothly.
Reliable Network Security
The TP-Link TL-R480T+ incorporates a powerful firewall and multiple access-control features to protect the network from unauthorized use and common online threats. Web authentication and flexible access policies provide administrators with better control over connected users and network resources.
4KV Lightning Protection
Professional lightning-protection technology safeguards the router against electrical surges of up to 4KV when used under properly grounded conditions. This added protection makes it suitable for businesses that require dependable networking equipment for long-term operation.
Easy Web-Based Management
The TP-Link TL-R480T+ can be configured and managed through a web browser. Its user-friendly management interface makes setting up WAN connections, load balancing, bandwidth policies and security controls convenient, even for networks without a dedicated hardware controller.
Key Features
- Supports up to four broadband WAN connections
- Three ports can be configured as either WAN or LAN
- Intelligent traffic distribution across multiple internet lines
- Supports Static IP, Dynamic IP, PPPoE, PPTP and L2TP
- Advanced QoS and IP-based bandwidth management
- Strong firewall and access-control capabilities
- Web authentication for connected users
- Up to 4KV lightning protection
- Compact 1U rack-mount-compatible design
- Suitable for small offices and business networks
